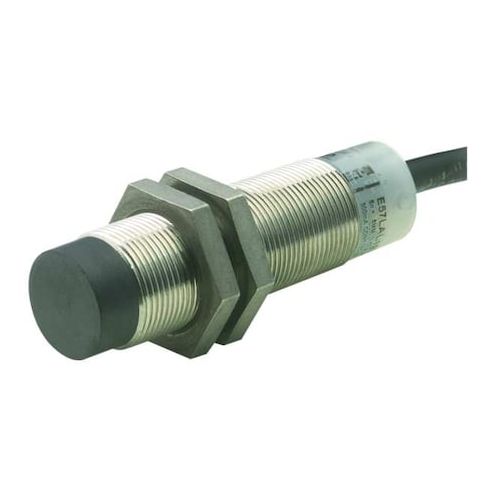

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57-18LE20-B
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This 18mm diameter inductive proximity sensor is designed for use in harsh environments, featuring a 303 stainless steel housing and an operating temperature range of -13°F to 158°F. The sensor is ideal for detecting metal objects in proximity, with a maximum detecting distance of 20mm and a frequency of 500Hz. Its 3-wire PNP output and 2m cable make it easy to integrate into a variety of applications, including automation, robotics, and industrial control systems. The sensor's compact size and robust construction make it suitable for use in a range of industries, including food processing, pharmaceuticals, and chemical manufacturing.
Top product features:
- Cylindrical design allows for easy installation in tight spaces
- Inductive technology enables detection of metal objects without physical contact
- Operating frequency of 500 Hz allows for reliable detection of objects up to 20 mm away
Top product applications:
- Automotive Industry: The cylindrical inductive proximity sensor can be used in automotive applications such as detecting metal objects in engine compartments or monitoring the presence of parts in assembly lines.
- Food and Beverage Processing: The sensor's stainless steel construction and IP67/69K rating make it suitable for use in food and beverage processing environments where sanitation and cleaning are critical.
- Machine Building and Robotics: The sensor's compact size and 3-wire PNP output make it suitable for use in machine building and robotics applications where precise detection and control are required.
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 18 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.10
- Package Height: 1.90
- Package Weight: 0.40
