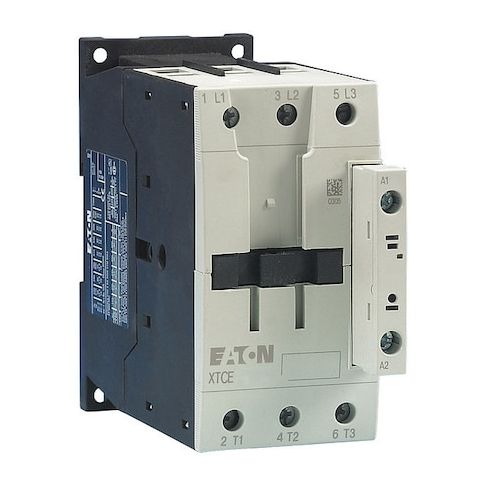

IEC Magnetic Contactor, No Auxiliary Contacts, 208V AC, 3 P, Non-Reversing, Screw MPN:XTCE065D00E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient switching device designed for use in various industrial and commercial applications. Rated for 208V AC and 65A, this 3-pole non-reversing contactor features screw terminals and no auxiliary contacts. Ideal for use in control panels and DIN rail mounting configurations, it offers high mechanical durability with 10 million cycles and embedded surge suppression. Suitable for applications requiring IP20 protection and voltages up to 690V AC, this contactor is certified to IEC 60947 and UL standards, making it a trusted choice for industries seeking a reliable and efficient switching solution.
Top product features:
- Non-Reversing Action: The contactor is designed to operate in a non-reversing mode, allowing for one-way control of electrical circuits.
- Three-Pole Configuration: The contactor features a three-pole design, enabling the control of three separate electrical circuits from a single device.
- Screw Terminals: The contactor uses screw terminals for connection, providing a secure and reliable method for attaching wires.
Top product applications:
- Industrial Automation Systems
- Automotive Electrical Systems
- Power Distribution Panels
The Eaton XT IEC contactor is an IEC magnetic contactor (electrically operated switching device) rated for use within specified electrical parameters. This model is a 3-pole, non-reversing unit with a 208 V AC coil, rated at 65 A, and features screw terminals with no auxiliary contacts. It is part of the XT series (Frame D) and is rated for operation at voltages up to 690 V AC, IP20 protection, and compatible with DIN rail and panel mounting configurations.
Key features
- - Action: Non-Reversing (Reversing: No)
- - Poles: 3
- Auxiliary Contacts: No
- - Coil Voltage: 208 V AC
- - Amperage Rating: 65 A
- - Maximum Voltage Rating: 690 V AC
- - Terminals: Screw
- - Mounting Style: DIN Rail, Panel
- - Frame Size / Series: Frame D
- Series XT
- - Enclosure: No Enclosure
- IP Rating: IP20
- - Certifications/Standards: IEC 60947
- UL Listed
- CSA Certified
- EN 60947
- CE Marked
- RoHS
- - Embedded Surge Suppressor: Yes
- - Mechanical Durability: 10,000,000 cycles
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 2.30
- Package Height: 6.00
- Package Weight: 2.05
