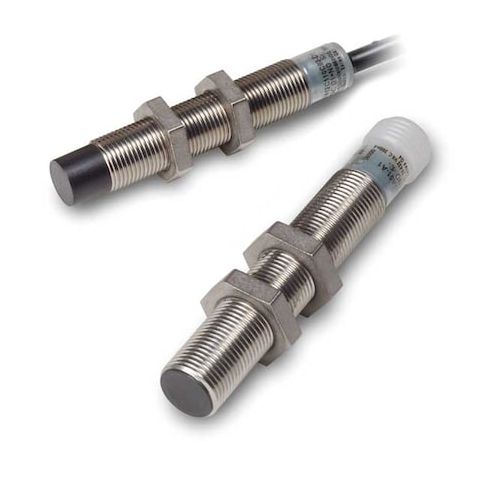

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded MPN:E59-M12C110C02-A1
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded
This 12mm diameter inductive proximity sensor is designed for a variety of applications, including industrial automation, material handling, and quality control. Its compact stainless steel housing provides durability and resistance to corrosion, while its 2-meter cable and 2-wire output make it easy to integrate into existing systems. With a maximum detecting distance of 10mm and operating frequency of 30Hz, this sensor accurately detects metal objects and provides a reliable output. Suitable for use in harsh environments, it can operate in temperatures from -40°F to 158°F and withstand exposure to water and dust.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Inductive technology detects metal objects within a 10 mm distance
- Operating temperature range of -40 to 158 degrees F ensures reliable performance in harsh environments
Top product applications:
- Automotive applications due to its resistance to extreme temperatures and moisture
- Industrial control systems for monitoring equipment and machinery
- Medical device manufacturing and inspection due to its precision and reliability
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 20 to 132V AC, Unshielded, Proximity Sensor Operating Frequency 30 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 62 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 250mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.00
- Package Height: 1.90
- Package Weight: 0.20
Product info last updated on January 15, 2026 7:15am UTC
Category: Industrial Electrical Controls and Automation
