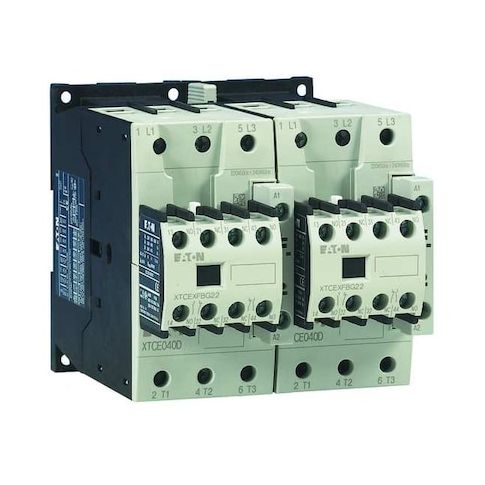

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR050D11T
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for controlling and monitoring electrical circuits. Suitable for use in a variety of applications, including industrial automation, HVAC, and lighting control, this 3-pole reversing contactor operates on 24V AC and features 1NO/1NC auxiliary contacts for added functionality. With an embedded surge suppressor and screw terminals, this contactor provides a high level of protection and ease of installation. Its compact design and DIN Rail or panel mounting capabilities make it an ideal choice for applications where space is limited, and flexibility is key.
Top product features:
- Reversing action
- 1NO/1NC auxiliary contacts
- Embedded surge suppressor
Top product applications:
- Industrial Automation Systems
- Power Distribution Systems
- Control Panels
The Eaton XT IEC contactor is an IEC magnetic contactor (3-pole, reversing) with a 24V AC coil. This model operates via electromagnetic actuation within specified parameters and is part of the XT series with frame D. This model includes 1NO/1NC auxiliary contacts (2 total), an embedded surge suppressor, and screw terminals. Suitable for DIN Rail or panel mounting configurations. Rated for operation within the specified current and frequency ranges
- rated temperature range: -13°F to 122°F.
- Action: Reversing
- - Poles: 3
- - Coil Voltage: 24V AC
- - Full Load Amps (Inductive): 50 A
- - Full Load Amps (Resistive): 80 A
- - Aux Contacts: 2 (1NO/1NC)
- - Contact Configuration: 1 NO, 1 NC
- - Frame Size / Series: Frame D, XT
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw
- - Embedded Surge Suppressor: Yes
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Frequency: 50/60 Hz
- - Certifications: CSA Certified
- UL Listed
- EN 60947
- IEC 60947
- RoHS
- - Compliance: CE Marked
- - Operating Temperature: -13°F to 122°F
- - Dimensions: Width 9.5 in
- Height 6 in
- Depth 5.79 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.40
- Package Height: 5.70
- Package Weight: 4.70
