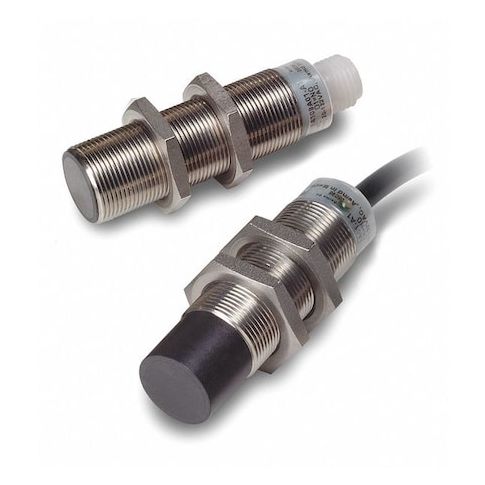

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Shielded MPN:E59-M18A108D01-D1
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Shielded
The Eaton Cylindrical Inductive Proximity Sensor is a reliable and efficient solution for detecting the presence of objects in a variety of applications. Its compact stainless steel design makes it ideal for use in harsh environments, such as food processing, pharmaceutical manufacturing, and chemical plants. With a maximum detecting distance of 8 mm and a programmable output circuit, this sensor can be easily integrated into existing systems. Its wide operating temperature range and IP67/IP69K ratings ensure consistent performance in demanding conditions, making it a valuable asset for industries requiring precise object detection and control.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Inductive technology detects metal objects within a 8 mm range
- Programmable output circuit allows for customized response to detected objects
Top product applications:
- Industrial Automation
- Automotive Manufacturing
- Medical Device Assembly
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Shielded, Proximity Sensor Operating Frequency 390 Hz, Proximity Sensor Output Circuit Type Programmable, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 69 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.80
- Package Height: 3.30
- Package Weight: 0.15
