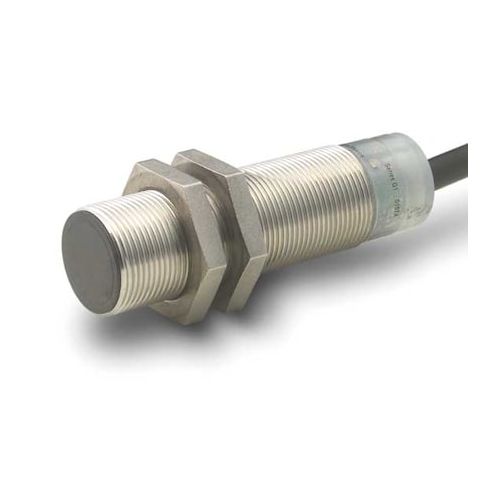

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded MPN:E57-18LE12-B
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded
This inductive proximity sensor is a reliable and durable solution for detecting objects in a variety of applications. With its cylindrical design and 18mm diameter, it can be easily integrated into industrial automation systems. The sensor operates at a frequency of 500Hz and has a maximum detecting distance of 12mm, making it ideal for applications where precision is crucial. Its semi-shielded design and stainless steel construction ensure resistance to harsh environments and corrosion. Suitable for use in automotive, aerospace, and medical industries, this sensor provides a stable and consistent output, reducing downtime and increasing productivity.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Detects objects up to 12 mm away
- Operates at frequencies up to 500 Hz
Top product applications:
- Automotive parts assembly and inspection
- Material handling and conveyor systems
- Robust industrial environments and harsh weather conditions
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 2.10
- Package Height: 6.20
- Package Weight: 0.40
Product info last updated on February 24, 2026 12:30am UTC
Category: Industrial Electrical Controls and Automation
