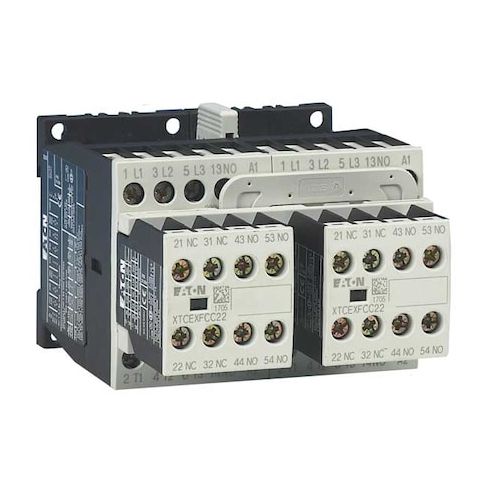

IEC Magnetic Contactor, 1NC/2NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR007B21C
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and versatile solution for power circuit switching applications. Designed for use in a variety of settings, this 3-pole reversing model features a 480 V AC coil and is rated for operation within 50/60 Hz frequency ranges. With its robust construction and embedded surge suppressor, this contactor ensures safe and efficient switching of power circuits. Suitable for mounting on DIN Rail or Panel, it's an ideal choice for industrial automation, control systems, and power distribution applications where reliability and flexibility are paramount.
Top product features:
- Reversing current direction
- Equipped with screw terminals
- Embedded surge suppressor
Top product applications:
- Industrial Automation Systems
- Power Distribution Panels
- Motor Control Centers
The Eaton XT IEC contactor is an IEC magnetic contactor rated for switching power circuits within specified parameters. It is a 3-pole reversing model with a 480 V AC coil, rated for operation within 50/60 Hz frequency ranges, and equipped with screw terminals. This frame is labeled Frame B in the XT series and is suitable for mounting on DIN Rail or Panel. The unit measures approximately 5.75 inches wide, 5 inches high, and 5.25 inches deep
- it is intended for use without an enclosure as specified.
- Action: Reversing – allows reversing current direction
- - Poles: 3
- - Coil Voltage: 480 V AC
- - Amperage Rating: 7A
- - Full Load Amps Inductive/Resistive: 7 A (inductive)
- 22 A (resistive)
- - Auxiliary Contacts: 4 total
- Configuration 2NO/1NC
- Form 1NC/2NO
- - Embedded Surge Suppressor: Yes
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Frame/Series: Frame B
- XT
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Certifications: CE Marked
- CSA Certified
- UL Listed
- EN 60947
- IEC 60947
- RoHS
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.30
- Package Height: 5.10
- Package Weight: 1.50
