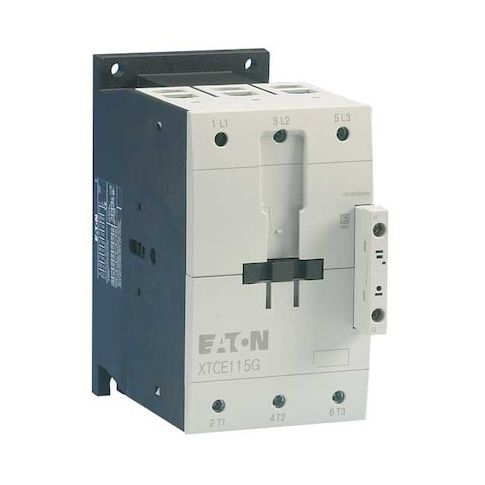

IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 3 P, Non-Reversing, Screw MPN:XTCE170G00B
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for controlling electrical circuits in various applications. This 3-pole, non-reversing contactor is suitable for use in industrial environments, such as manufacturing, process control, and power distribution systems. Its 240V AC coil and 690V AC maximum voltage rating make it ideal for use in high-voltage applications. The contactor's integrated surge suppression component provides additional protection against electrical surges. With its compact design and easy mounting on DIN rail or panel, the Eaton XT IEC contactor is a convenient and cost-effective solution for a wide range of industrial applications.
Top product features:
- 3-pole, non-reversing device
- Non-reversing action allows for one-way control of electrical circuits
- Integrated surge suppression component provides some level of protection against voltage spikes
Top product applications:
- Control Panels
- Industrial Automation
- Machine Control Systems
The Eaton XT IEC contactor is an IEC magnetic contactor (Frame G) from the XT series. It is a 3-pole, non-reversing device with a 240 V AC coil and a 690 V AC maximum voltage rating. It is rated for operation within the specified current ratings under typical conditions, and it uses screw terminals. The unit mounts on DIN rail or panel, includes no auxiliary contacts (0 NO/0 NC), and includes an integrated surge suppression component (note: does not guarantee protection). It is labeled IP20 and does not include an enclosure
- suitable for use in appropriate environments as per specifications.
Key features
- - Poles: 3
- Action: Non-Reversing
- Reversing: No
- - Coil voltage: 240 V AC
- - Maximum voltage rating: 690 V AC
- - Amperage (full load): Inductive 170 A
- Resistive 275 A
- - Auxiliary contacts: No
- Contact configuration: 0 NO / 0 NC
- - Mounting: DIN Rail, Panel
- Electrical connection: Screw terminals
- - Frame/Series: Frame G, Series XT
- - Enclosure/IP: IP20
- Does not include an enclosure
- suitable for use in appropriate environments as per specifications
- - Certifications/standards: UL Listed
- CSA Certified
- CE Marked
- EN 60947
- IEC 60947
- RoHS
- - Dimensions: Height 6.69 in
- Width 4.37 in
- Depth ~6.30 in
- - Other: Includes an integrated surge suppression component (note: does not guarantee protection)
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 32 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 7.40
- Package Height: 3.90
- Package Weight: 5.25
