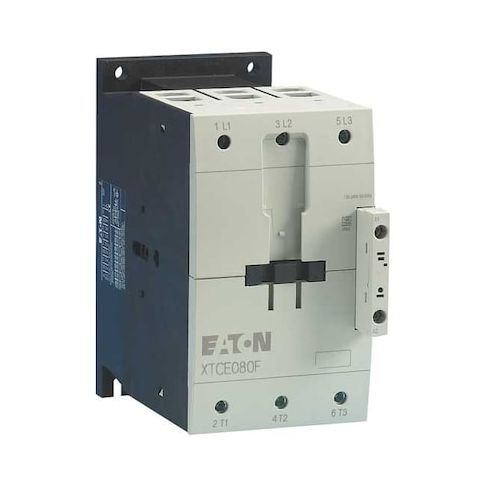

IEC Magnetic Contactor, No Auxiliary Contacts, 208V AC, 3 P, Non-Reversing, Screw MPN:XTCE080F00E
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for controlling power circuits in industrial and commercial applications. Suitable for use in 208V AC systems, this 3-pole, non-reversing device can be mounted on DIN rail or panel, offering flexibility and convenience. With a durable design and robust construction, it can handle high inductive loads of up to 80A and resistive loads of up to 110A. Ideal for use in a variety of settings, including manufacturing plants, data centers, and commercial buildings, the Eaton XT IEC contactor provides a reliable and efficient solution for power control and distribution.
Top product features:
- 3-pole design for controlling power circuits
- Non-reversing action for consistent operation
- Screw terminals for secure electrical connections
Top product applications:
- General Lighting Control
- Motor Control
- Power Distribution
The Eaton XT IEC contactor is an IEC magnetic switch rated for controlling power circuits within specified parameters. It is a 3-pole, non-reversing device with a 208V AC coil and screw terminals, and it does not include auxiliary contacts. It is part of the XT series (Frame F) and compatible with DIN rail and panel mounting methods, rated for operation within the specified voltage and frequency ranges. The enclosure is provided without an enclosure (if applicable), while it carries an IP20 rating.
Key features
- - Product name: Eaton XT IEC contactor
- - Poles: 3
- Reversing: No
- Action: Non-Reversing
- - Coil voltage: 208V AC
- - Auxiliary contacts: does not include auxiliary contacts
- Contact configuration: 0 NO/0 NC
- - Electrical connection: Screw terminals
- Mounting style: DIN Rail, Panel
- - Frame/Series/Code: Frame F
- Series XT
- Type: Full voltage non-reversing contactor
- - Maximum voltage: 690V AC
- Frequency: 60 Hz
- IP rating: IP20
- Enclosure: Provided without an enclosure (if applicable)
- - Durability: durability ratings based on standard testing conditions
- actual performance may vary depending on application and usage conditions
- - Full load amps: Inductive 80A
- Resistive 110A
- - Dimensions: Height 6.69 in
- Width 3.54 in
- Depth 5.59 in
- - Certifications: IEC Rated
- UL Listed
- CSA Certified
- EN 60947
- IEC 60947
- - Mounting: DIN Rail, Panel
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 6.60
- Package Height: 4.00
- Package Weight: 5.02
