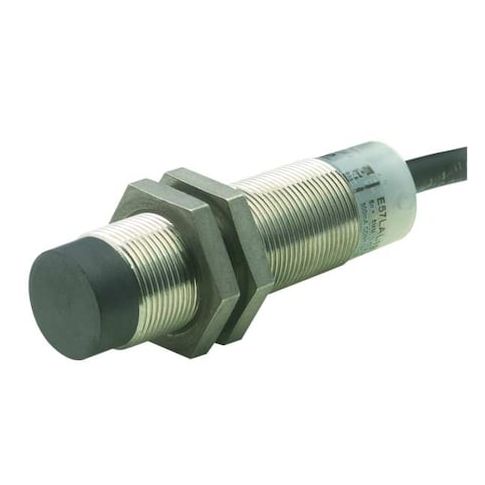

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded MPN:E57-18LE20-A
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded
This inductive proximity sensor is a reliable and efficient solution for detecting objects in various industrial applications. Its cylindrical design and stainless steel construction ensure durability and resistance to harsh environments. With a maximum detecting distance of 20 mm and a frequency of 20 Hz, it provides accurate and consistent detection. The sensor's 2-wire output and 2-meter cable make it easy to integrate into existing systems. Suitable for use in food processing, pharmaceuticals, and other industries where cleanliness and reliability are crucial, this sensor offers a cost-effective and low-maintenance solution for proximity detection.
Top product features:
- Cylindrical design allows for easy installation in tight spaces
- Detects objects at a maximum distance of 20 mm
- Operates at a frequency of 20 Hz
Top product applications:
- Industrial automation and robotics
- Machine monitoring and control
- Material handling and conveyor systems
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 20 to 132V AC, Unshielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.00
- Package Height: 6.20
- Package Weight: 0.34
Product info last updated on February 6, 2026 7:38pm UTC
Category: Industrial Electrical Controls and Automation
