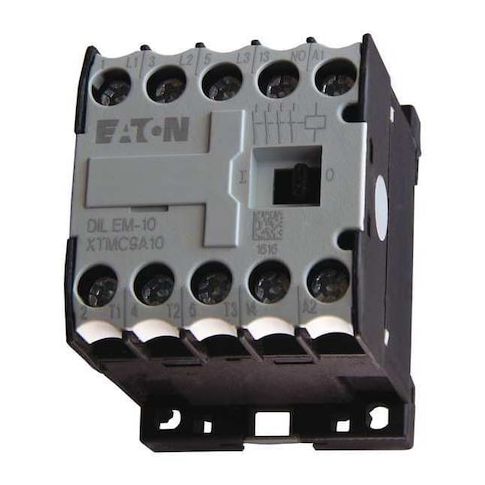

IEC Miniature Magnetic Contactor, 1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:XTMC9A10E
Free Shipping
In Stock
The Eaton XT IEC Miniature Magnetic Contactor is a compact, three-pole, non-reversing switching device ideal for a wide range of applications, including industrial control systems, HVAC, and power distribution. Its compact design and screw terminals make it easy to install and integrate into existing systems. With a rating of 208V AC and 8.80A continuous current, this contactor provides reliable switching and control. Suitable for indoor use with an IP20 rating, it's perfect for applications where space is limited. Its non-reversing design ensures safe and efficient operation, making it a great choice for various industrial and commercial applications.
Top product features:
- Full voltage non-reversing operation
- One normally open auxiliary contact
- Built-in surge suppression
Top product applications:
- Industrial control systems
- Motor control circuits
- Power distribution panels
The Eaton XT IEC Miniature Magnetic Contactor is a compact, three-pole, non-reversing, coil-operated switching device rated for operation within specified voltage and current ranges. Rated for use with coils at 208V AC
- contact ratings are based on specified electrical parameters, and it provides one normally open auxiliary contact (1NO) in addition to its main contacts. It contains built-in surge suppression components as per specifications
- it uses screw terminals and is provided without an enclosure
- suitable for indoor installation within IP20 rating.
- Coil Voltage: rated for coil voltages of 208V AC within specified tolerances
- - Amperage Rating: rated for continuous current up to 8.80A under normal operating conditions
- - Contact Configuration: configured with one normally open contact as per specifications
- - Auxiliary Contacts: equipped with one auxiliary normally open contact, rated according to specifications
- - Embedded Surge Suppressor: includes integrated surge suppression components as per design standards
- - Enclosure: supplied without an enclosure
- installation should comply with applicable safety standards and environmental conditions
- - IP Rating: IP20
- - Frame Size: A
- - Mounting Style: DIN Rail, Panel
- - Termination: Screw
- - Maximum Voltage Rating: 690V AC/DC
- - Series/Type: XT
- Full voltage non-reversing mini contactor
- - Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- CE Marked
- RoHS
- - Temperature Range: -13°F to 122°F
- - Dimensions: Width 2.5 in
- Height 2 in
- Depth 2.5 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 2.30
- Package Weight: 0.40
