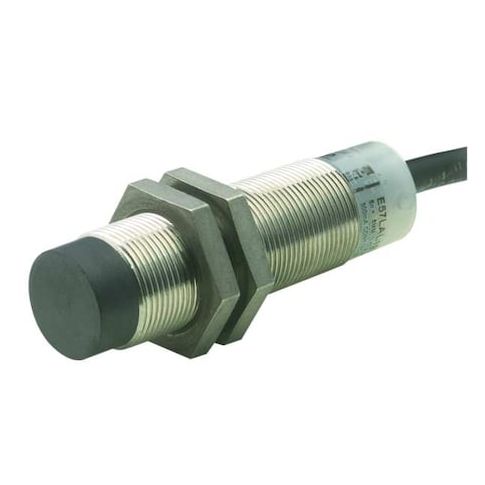

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded MPN:E57-18LE20-AA
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. Its compact cylindrical design and 18mm diameter make it ideal for use in tight spaces, while its stainless steel construction ensures durability and resistance to corrosion. With a maximum detecting distance of 20mm and a frequency of 20Hz, this sensor can accurately detect objects in a range of environments. Suitable for use in food processing, pharmaceutical, and other industries where hygiene is crucial, this sensor provides a cost-effective and efficient solution for proximity detection.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Detects presence of objects within 20 mm distance
- Operates within a wide temperature range of -13 to 158 degrees Fahrenheit
Top product applications:
- Automotive manufacturing for detecting metal parts on production lines
- Medical equipment for monitoring patient movement and proximity
- Industrial automation for detecting metal objects on conveyor belts
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 20 to 132V AC, Unshielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection 3 Pin Micro AC Connector, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 69 mm, Operating Temp. Range -13 Degrees to 158 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 2.10
- Package Height: 1.90
- Package Weight: 0.15
Product info last updated on February 16, 2026 5:09pm UTC
Category: Industrial Electrical Controls and Automation
