IEC Miniature Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Screw MPN:XTMC6A01TD

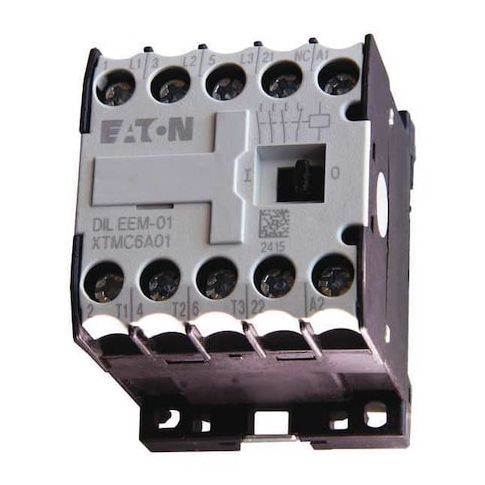

• The Eaton XT IEC Miniature Magnetic Contactor is a compact, 3-pole, non-reversing contactor with a 24 V DC coil. Includes auxiliary contacts and compatible terminal types as specified. It is suitable for DIN-rail or panel mounting within IP20 enclosures. Rated for operation within the specified voltage ranges with a maximum current of 6.60 A

• includes an embedded surge suppressor component. Complies with applicable standards including UL, CSA, IEC 60947, EN 60947, CE Marking, RoHS.

  - Action: Non-Reversing

• - Aux. Contact Configuration: 1NC
• - Coil Voltage: 24V DC
• - Auxiliary Contacts: Yes (Includes 1 NC)
• - Amperage Rating: 6.60A
• - Maximum Voltage Rating: 690V AC/DC
• - Embedded Surge Suppressor: Yes
• - Enclosure NEMA Rating: No Enclosure
• - IP Rating: IP20
• - Mounting Style: DIN Rail, Panel
• - Terminals: Screw
• - Frame Size: A
• - Series: XT
• - Number of Poles: 3
• - Certifications/Standards: UL Listed
• CSA Certified
• IEC 60947
• EN 60947
• CE Marked
• RoHS
• - Operating Temperature: -13°F to 122°F
