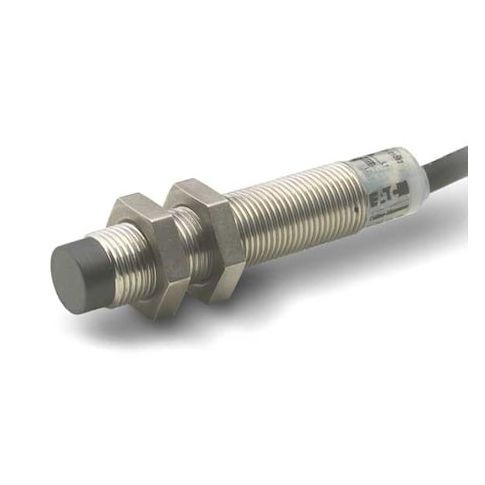

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded MPN:E57-12LE10-BD
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded
This Eaton inductive proximity sensor is a reliable and durable solution for detecting objects in harsh environments. With a stainless steel body and IP67/69K rating, it can withstand extreme temperatures and exposure to water and dust. The sensor's 800 Hz operating frequency and 10 mm detecting distance make it suitable for a wide range of applications, including industrial automation, material handling, and food processing. The 3-wire PNP output and 6-48V DC power requirement provide flexibility in system design. Perfect for use in environments where precision and reliability are crucial, this sensor is a valuable addition to any industrial setup.
Top product features:
- Inductive proximity sensing technology
- Operates at a frequency of 800 Hz
- Detects objects up to 10 mm away
Top product applications:
- Automotive Industry for detecting metal objects in tight spaces
- Food Processing Equipment for detecting metal contaminants in food processing lines
- Medical Equipment for detecting metal objects in medical device assembly lines
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 77 mm, Operating Temp. Range -13 Degrees to 158 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.70
- Package Height: 3.30
- Package Weight: 0.10
Product info last updated on January 15, 2026 8:00am UTC
Category: Industrial Electrical Controls and Automation
