IEC Mini Control Relay2NO/2NC480VAC10A MPN:XTRM10A22C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0587946

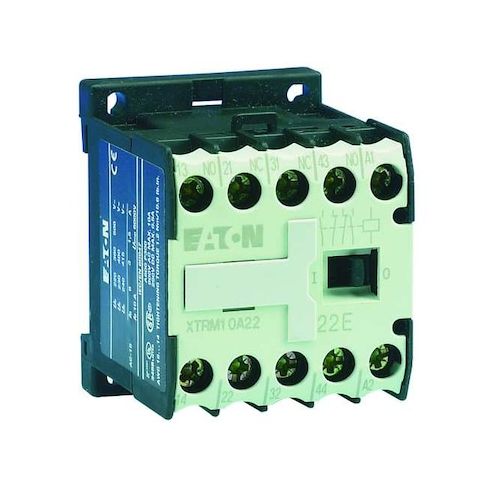

IEC Mini Control Relay2NO/2NC480VAC10A
The Eaton IEC Mini Control Relay is a compact and reliable solution for control applications in industrial settings. With a 10A current rating and 2NO/2NC contact form, it can handle a wide range of control functions. Its high power consumption of 3.9VA and IP20 rating make it suitable for use in harsh environments. This relay is ideal for applications such as machine control, process control, and automation, where space is limited and reliability is crucial. Its compact size and DIN rail mounting style make it easy to integrate into existing systems, providing a flexible and efficient control solution.
Top product features:
- 2NO/2NC contact form provides two normally open and two normally closed contacts for flexible control circuit applications.
- Screw terminal electrical connection allows for easy and secure wiring.
- DIN rail mounting style enables easy installation and organization in control panels.
Top product applications:
- Industrial Automation
- Motor Control
- Machine Control
IEC Mini Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 2.5 A @ 24V, Coil Voltage 415/480V AC, Contact Rating (AC) 6 A @ 240V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail, Power Consumption 3.9 VA, IP Rating IP20, Frame Size 45 mm, NEMA Size Not Applicable, Compatible with Series XTRM Mini Control Relays, Maximum Operating Temperature 122 Degrees F, Frequency 50/60 Hz, Body Depth 2.05 in, Body Height 2.5 in, Body Width 1.77 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 2.20
- Package Weight: 0.40
Product info last updated on January 15, 2026 7:57am UTC
Category: Industrial Electrical Controls and Automation
