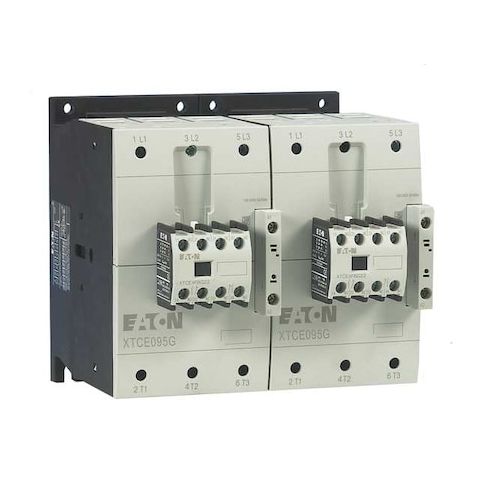

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR095F11T
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for controlling three-pole loads in various applications. Rated for operation with a 24 V AC coil, this contactor features reversing operation and includes auxiliary contacts for added functionality. Suitable for use in environments compatible with IP20 enclosures, it can be mounted on DIN Rail or panels. This contactor is ideal for use in commercial and industrial settings, such as in lighting control systems, HVAC systems, and machinery control applications, providing a reliable and efficient way to manage loads and improve overall system performance.
Top product features:
- The Eaton XT IEC contactor is a three-pole, reversing IEC magnetic contactor rated for operation with a 24 V AC coil within specified parameters.
- It includes auxiliary contacts.
- It has surge suppression features.
Top product applications:
- General purpose control applications in industrial settings
- Motor control applications in various industries
- Reversing starter applications for 3-phase motors
The Eaton XT IEC contactor is a three-pole, reversing IEC magnetic contactor rated for operation with a 24 V AC coil within specified parameters. It includes auxiliary contacts
- surge suppression features are not guaranteed to protect against all transients
- screw terminals are provided. The unit is IP20-compatible and rated for use in environments compatible with IP20 enclosures
- intended for mounting on DIN Rail or panels as specified, belonging to the XT series with Frame F designation.
Key features
- - Operation: Reversing operation rated within specified electrical ratings
- - Poles: 3
- - Coil voltage: 24 V AC
- - Auxiliary contacts: 2 total (1 NO / 1 NC)
- - Main load ratings: Rated for loads up to these current levels under specified conditions
- actual performance may vary based on application
- - Frequency: 50/60 Hz (50-60 Hz)
- - Enclosure/IP: IP20-compatible environments
- - Terminals: Screw
- - Mounting: DIN Rail, Panel
- - Frame/Series: Frame F
- XT series
- - Certifications/compliances: Complies with listed standards when installed and used according to manufacturer instructions
- - Operating temperature: -13 to 122 Degrees F
- - Dimensions: Height 6.14 in
- Width 7.09 in
- Depth 6.85 in
- - Includes auxiliary contacts: Yes
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 11.00
- Package Height: 8.00
- Package Weight: 14.50
