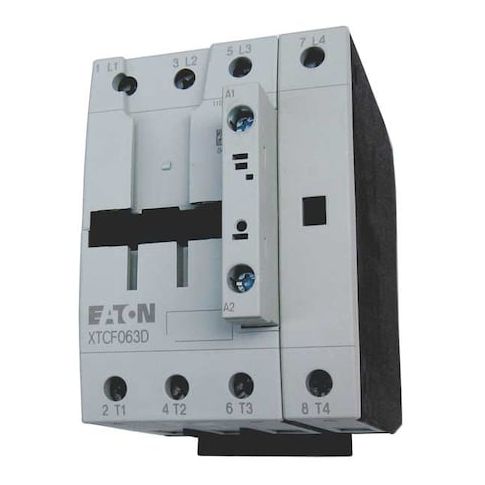

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw MPN:XTCF063D00TD
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in accordance with IEC standards. Designed for use in a variety of applications, including industrial control systems, motor controls, and power distribution, this 4-pole, non-reversing device offers a high level of performance and durability. With a 24V DC coil and screw terminals, it can handle resistive loads up to 63A and inductive loads up to 40A, making it an ideal choice for a range of industries, including manufacturing, oil and gas, and healthcare. Its compact design and DIN rail or panel mounting options provide flexibility and ease of installation.
Top product features:
- The Eaton XT IEC contactor is designed to switch power circuits in accordance with IEC standards.
- It has an integrated surge suppression component to protect against power surges.
- It is rated for resistive loads up to 63 A and inductive loads up to 40 A.
Top product applications:
- Power distribution in industrial settings
- Electrical control systems for machinery and equipment
- Automotive electrical systems
The Eaton XT IEC contactor is an IEC magnetic contactor designed to switch power circuits in accordance with IEC standards. It is a 4-pole, non-reversing device with a 24 V DC coil and screw terminals, and it has no auxiliary contacts. rated for operation within the specified voltage ranges, it is aligned for use with standard three-phase or single-phase power distribution. The unit supports DIN rail or panel mounting according to installation instructions
- conforms to XT series specifications for frame size D
- includes an integrated surge suppression component.
- Coil voltage: 24 V DC
- - Poles: 4
- - Action/Reversing: Non-Reversing
- Reversing: No
- - Aux contacts: No Auxiliary Contacts
- - Full-load amps: is rated for resistive loads up to 63 A and inductive loads up to 40 A
- - Terminal connection: Screw
- - Frame/Series: Frame D
- Series XT
- - Maximum voltage: rated for operation within the specified voltage ranges
- - IP rating: IP20
- - Mounting style: DIN Rail, Panel
- - Certifications/Standards: UL Listed
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- CE Marked
- - Operating temperature: -13°F to 122°F
- - Mechanical life: 10,000,000 cycles
- - Overall dimensions: Width 3.35 in
- Height 4.53 in
- Depth 5.79 in
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 19 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 5.00
- Package Height: 3.90
- Package Weight: 2.80
