Manual Mtr Protctr, 20A, PushButtn, Frame B MPN:XTPB020BC1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0503063

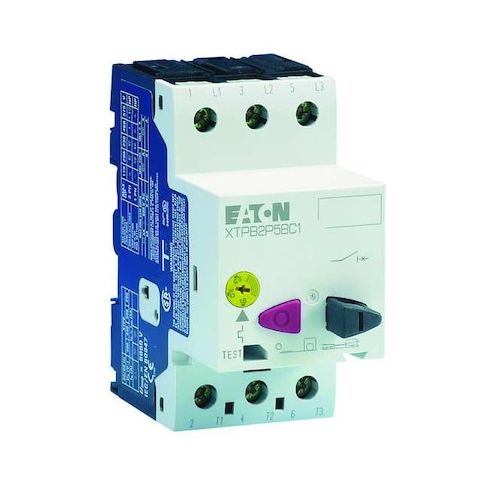

Manual Mtr Protctr, 20A, PushButtn, Frame B
Protect your motors from overload and damage with the Eaton Manual Motor Protector. This reliable device safeguards your equipment in hazardous environments, ensuring safe operation and extending the lifespan of your motors. With a maximum voltage rating of 600V AC, it's suitable for a wide range of applications, including industrial, commercial, and manufacturing settings. The push-button operator provides easy access and control, while the 20A current rating ensures optimal protection. Ideal for use in single-phase and three-phase systems, this protector is a must-have for any facility looking to prevent motor damage and ensure efficient operation.
Top product features:
- Manual Mtr Protctr, 20A, PushButtn, Frame B from Eaton has a Maximum Overload Relay Current Setting of 20 A.
- It has a Horsepower rating of 1.5 hp at 120V AC single phase.
- It has a Horsepower rating of 10 hp at 480V AC three phase.
Top product applications:
- Motor protection in single-phase 120V AC systems up to 1.5 hp
- Motor protection in three-phase 240V AC systems up to 5 hp
- Motor protection in three-phase 480V AC systems up to 10 hp
Manual Motor Protector, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1 1/2 hp, Horsepower @ Single Phase - 240V AC 3 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 20 A, Horsepower @ Three Phase - 208V AC 5 hp, Horsepower @ Three Phase - 240V AC 5 hp, Horsepower @ Three Phase - 480V AC 10 hp, Series XTPB Series, Horsepower @ Three Phase - 600V AC 15 hp, Maximum Overload Relay Current Setting 20 A
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.00
- Package Height: 3.80
- Package Weight: 0.72
Product info last updated on February 17, 2026 1:37am UTC
Category: Industrial Electrical Controls and Automation
