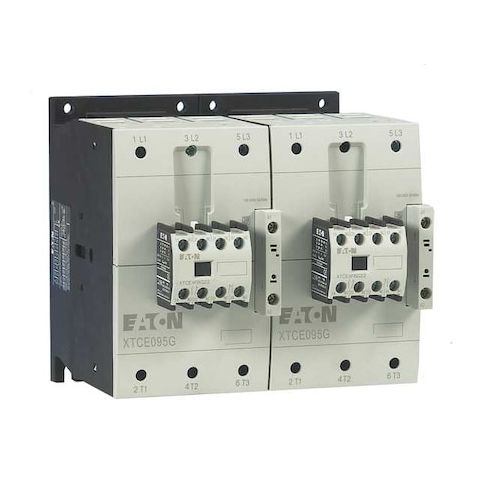

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR080F11C
Free Shipping
In Stock
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for controlling electrical circuits in industrial settings. Its 3-pole reversing design allows for flexible operation, while its 480V AC coil and 80A rating enable it to handle demanding applications. The unit features screw terminals for easy wiring and includes an embedded surge suppressor for added protection. Compatible with DIN rail and panel mounting, this contactor is ideal for use in control panels, machinery, and other industrial equipment, providing a safe and reliable way to control electrical currents and improve overall system performance.
Top product features:
- Reversing action
- 1 normally open and 1 normally closed auxiliary contact
- Embedded surge suppressor
Top product applications:
- Industrial Automation Systems
- Motor Control Centers
- Power Distribution Units
The Eaton XT IEC contactor is a 3-pole, reversing IEC magnetic contactor rated for operation within specified electrical parameters. It is energized by a 480V AC coil and is rated for operation up to 80A according to manufacturer specifications. The unit includes 1 normally open and 1 normally closed auxiliary contact (2 total), uses screw terminals for wiring, and includes an embedded surge suppressor. It conforms to IP20 standards when installed properly
- does not imply protection against all environmental factors. It is compatible with DIN rail and panel mounting per installation guidelines, as part of the XT series, with frame size F.
- Action: Reversing
- - Poles: 3
- - Amperage rating: 80A
- - Coil voltage: 480V AC
- - Auxiliary contact configuration: 1NO/1NC
- - Auxiliary contact form: 1NC/1NO
- - Embedded surge suppressor: Yes
- - Electrical connection: Screw terminals
- - Mounting style: DIN Rail, Panel
- - Frame / Series / Code: Frame F
- XT
- - Contactor style: IEC
- - Type: Rated for operation at specified voltage ranges (e.g., 480V AC)
- - IP rating: IP20
- - Enclosure: No Enclosure
- - Certifications/Standards: Certified according to listed standards, indicating compliance but not guaranteeing performance under all conditions
- - Overall dimensions (W × D × H): 6.54 in × 5.08 in × 6.14 in
- - Mounting hole diameter: 0.27 in
- - Mounting hole spacing (height × width): 11.77 in × 6.97 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.10
- Package Height: 7.90
- Package Weight: 14.50
