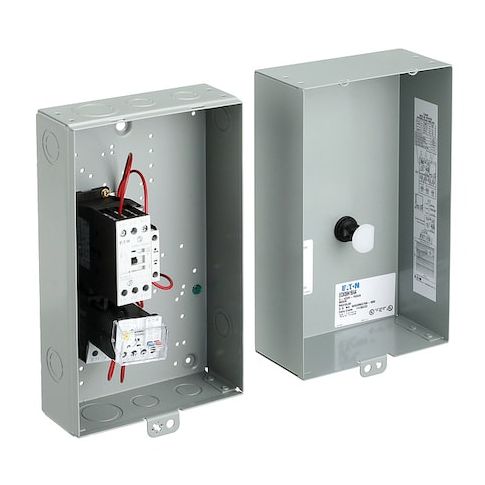

Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 24V DC, 3 Poles, 1NO/1NC MPN:ECX09H1QAA-R63/D
Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 24V DC, 3 Poles, 1NO/1NC
The Eaton Nonreversing IEC Magnetic Motor Starter is a reliable and efficient solution for controlling three-phase motors in a variety of applications. This starter is suitable for use in industrial settings, such as manufacturing plants, power generation facilities, and commercial buildings, where high power output is required. With a maximum horsepower rating of 30 hp, this starter can handle demanding tasks while providing overload protection and electronic trip class functionality. Its compact design and surface mounting style make it easy to integrate into existing systems, making it an ideal choice for new installations and upgrades.
Top product features:
- Non-reversing operation allows for one-way control of motor direction.
- Three-pole design enables three-phase power supply compatibility.
- Electronic overload protection provides automatic shutdown in case of excessive current draw.
Top product applications:
- Industrial control systems
- Automotive manufacturing
- Power generation and distribution
IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 45 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 9 A, Trip Class 10A/10/20/30, Series XT, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style IEC, Reversing Capability Non-Reversing, Maximum Voltage Rating 690V AC, Coil Voltage 24V DC, Horsepower @ Three Phase - 600V AC 30 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 22 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 10.20
- Package Height: 8.50
- Package Weight: 10.63
Product info last updated on March 4, 2026 6:22am UTC
Category: Industrial Electrical Controls and Automation
