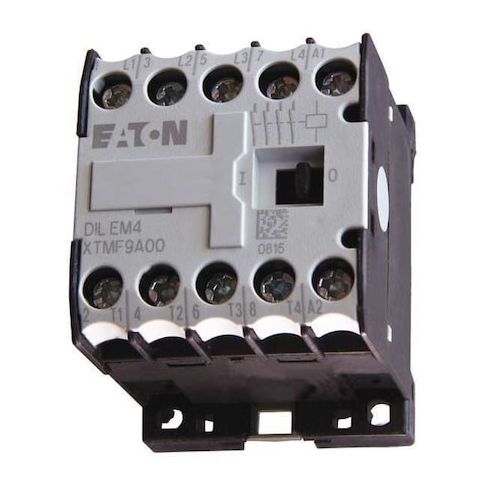

IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw MPN:XTMF9A00TD
Free Shipping
In Stock
The Eaton XT IEC mini contactor is a reliable and efficient solution for a wide range of applications. Designed for use in 24V DC systems, this compact contactor features four poles and non-reversing action, making it ideal for use in control circuits and motor control applications. With its screw terminals and embedded surge suppressor, this contactor provides a safe and reliable connection. Suitable for use in industrial, commercial, and residential settings, the XT series contactor is certified to meet international standards, including UL Listed, CSA Certified, and CE Marked. Its compact size and robust design make it an excellent choice for a variety of applications.
Top product features:
- The Eaton XT IEC mini contactor has a non-reversing action.
- It has four poles.
- It uses screw terminals.
Top product applications:
- Industrial Control Systems
- Motor Control Circuits
- Automated Manufacturing Equipment
The Eaton XT IEC mini contactor is an IEC miniature magnetic contactor with four poles and a 24 V DC coil. It is rated for operation with non-reversing action and uses screw terminals, with no auxiliary contacts. The XT series is UL Listed, CSA Certified, CE Marked, EN 60947, IEC 60947, and RoHS certified.
- Coil Voltage: 24 V DC
- - Action: Non-Reversing
- - Poles: 4
- - Amperage Rating: 8.80 A
- - Auxiliary Contacts: No Auxiliary Contacts
- - Termination: Screw Terminals
- - Embedded Surge Suppressor: Yes
- - IP Rating: IP20
- - Mounting Style: DIN Rail, Panel
- - Mounting Position: Vertical
- - Frame Size / Series: Frame A / XT
- - Maximum Voltage Rating: Rated for use within voltage ranges up to 690V AC/DC
- - Product Dimensions: Width 1.77 in
- Height 1.5 in
- Depth 2 in
- - Certifications: UL Listed
- CSA Certified
- CE Marked
- EN 60947
- IEC 60947
- RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.20
- Package Height: 1.80
- Package Weight: 0.45
