IEC Magnetic Contactor, No Auxiliary Contacts, 208V AC, 4 P, Non-Reversing, Screw MPN:XTCF080D00E
Free Shipping
In Stock

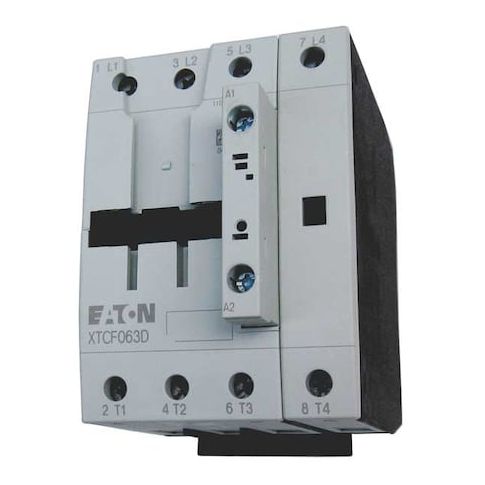

The Eaton XT IEC Magnetic Contactor is a reliable and efficient control device designed for indoor use in a variety of applications. Suitable for resistive loads up to 80A and inductive loads up to 50A, this four-pole, non-reversing contactor is ideal for use in commercial and industrial settings. Its screw terminals and DIN Rail or panel mounting style make it easy to integrate into existing systems. The XT contactor is also CE marked, CSA certified, and complies with EN 60947 and IEC 60947 standards, ensuring safe and reliable operation.
Top product features:
- Switches within specified electrical parameters
- Rated for resistive loads up to 80 A and inductive loads up to 50 A
- Compatible with 208 V AC supply voltage
Top product applications:
- Industrial Automation
- High-Reliability Power Distribution
- Machine Control Systems
The Eaton XT IEC Magnetic Contactor is a four-pole, full-voltage non-reversing control device (Frame D, Series XT) rated for switching within specified electrical parameters. It is compatible with 208 V AC supply voltage, equipped with screw terminals for wiring connections, and does not include auxiliary contacts.
- Poles: 4 (4P)
- - Coil voltage: 208 V AC
- - Action: Non-Reversing
- Reversing: No
- - Auxiliary contacts: Does not include auxiliary contacts
- - Amperage rating: rated for resistive loads up to 80 A and inductive loads up to 50 A within specified conditions
- - Mounting style: DIN Rail, Panel
- - Electrical connection: Screw Terminals
- - Enclosure: Indoor use
- IP Rating: IP20 (per standards)
- - Series/Frame: XT
- Frame Size: D
- - Standards/Certifications: CE Marked
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- UL Listed
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.00
- Package Height: 4.00
- Package Weight: 2.45
