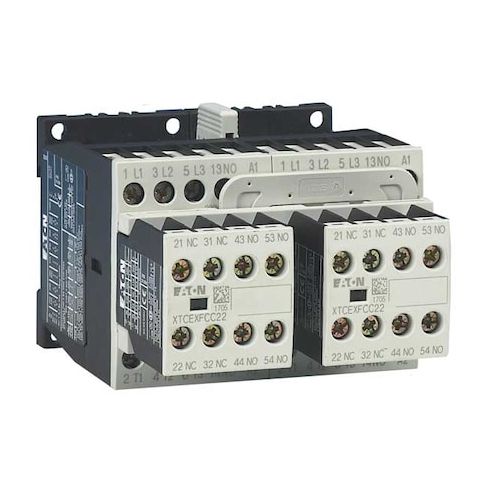

IEC Magnetic Contactor, 1NC/2NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR009B21T
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for a wide range of applications, including motor control and power distribution. Its 3-pole reversing design allows for easy switching and control of loads, while its 24V AC coil provides a compact and energy-efficient solution. With a maximum operating temperature of 122°F and a minimum operating temperature of -13°F, this contactor can handle a variety of environments. Its compact design and screw terminal connections make it ideal for use in industrial control panels, machinery, and equipment, providing a reliable and efficient solution for applications requiring high-performance switching and control.
Top product features:
- The Eaton XT IEC contactor has a 3-pole reversing action.
- It uses screw terminals for termination and connection.
- It has a built-in surge suppressor.
Top product applications:
- Automotive Applications
- The Eaton XT IEC contactor can be used as a reversing contactor in automotive systems, such as in electric vehicle charging stations or in the control of electric motors used in automotive manufacturing processes.
- Industrial Control Systems
- Action: The Eaton XT IEC contactor is a 3-pole reversing IEC magnetic contactor with a 24 V AC coil. It uses screw terminals, supports DIN Rail or panel mounting, and is provided without an enclosure. This device carries IEC 60947/UL CSA/EN RoHS/UL Listed type certifications and is marketed under the XT series as an IEC contactor.
- - Poles: 3
- - Coil Voltage: 24 V AC
- - Embedded Surge Suppressor: Yes
- - Auxiliary Contacts: Yes
- Configuration: 2NO/1NC
- Form: 1NC/2NO
- Number of Aux Contacts: 4
- - Termination/Connection: Screw terminals
- - Mounting Style: DIN Rail, Panel
- - Enclosure: No Enclosure
- IP Rating: IP20
- - Frame Size / Series: Frame B
- Series XT
- - Certifications: IEC 60947
- CSA Certified
- UL Listed
- EN 60947
- - Frequency: 50/60 Hz
- Frequency Rating: 50-60 Hz
- - Full Load Amps (Inductive): 9 A
- Full Load Amps (Resistive): 22 A
- - HP Ratings (selected): 1/2 hp at 120V
- 1-1/2 hp at 230V and 240V
- 3 hp at 208V and 240V (3-phase)
- 5 hp at 480V
- 7-1/2 hp at 575V
- - Dimensions: Width 5.75 in
- Height 5 in
- Depth 5.25 in
- - Operating Temperature: Max 122 Degrees F
- Min -13 Degrees F
- - Product Name: Eaton XT IEC contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.90
- Package Height: 3.10
- Package Weight: 0.50
