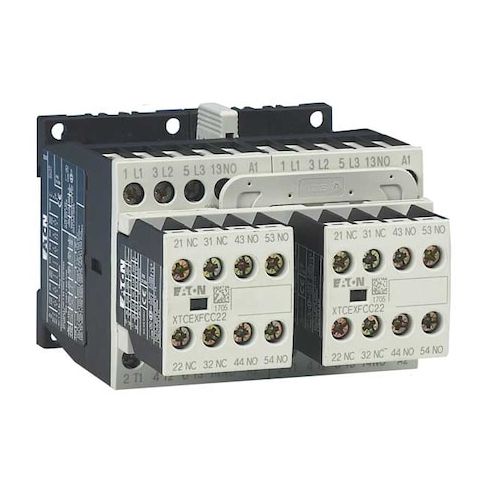

IEC Magnetic Contactor, 1NC/2NO, 24V DC, 3 P, Reversing, Screw MPN:XTCR007B21TD
Free Shipping
In Stock
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for power circuit switching in various applications. With its 3-pole, reversing design and 24V DC coil, it provides a flexible and compact option for use in control systems, industrial automation, and electrical distribution. The contactor features screw terminals for easy wiring and mounting on a DIN rail or panel, making it ideal for use in harsh environments. Its built-in surge suppressor and auxiliary contacts ensure safe and reliable operation, while its certifications and standards compliance provide peace of mind for use in a wide range of applications.
Top product features:
- The Eaton XT IEC contactor features a built-in surge suppressor.
- It has screw terminals for wiring and mounting on a DIN rail or panel.
- The contactor includes auxiliary contacts configured as 2 NO / 1 NC.
Top product applications:
- Automatic Lighting Control Systems
- Motor Control Circuits
- Power Distribution Panels
The Eaton XT IEC contactor is a 3-pole, reversing IEC magnetic contactor with a 24 V DC coil. Rated for switching power circuits within specified parameters, it features screw terminals for wiring and mounting on a DIN rail or panel. The unit features an IP20 rated enclosure, with a built-in surge suppressor and auxiliary contacts configured as 2 NO / 1 NC (form 1 NC / 2 NO). It belongs to the XT series with frame size B and carries multiple certifications, including EN 60947, CSA Certified, UL Listed, IEC 60947, and CE Marked.
Key features
- - Coil voltage: 24 V DC
- - Action: Reversing function
- - Poles: 3
- - Amperage rating: 7 A (Full Load: Inductive 7 A, Resistive 22 A)
- - Auxiliary contacts are provided in the specified configuration.
- - Contains a surge suppression component rated for intended use.
- - Mounting style: DIN Rail, Panel
- - Electrical connection: Screw terminals
- - Frame size/Series: Frame B
- Series XT
- - Enclosure: IP20 rated enclosure
- - Certifications/Standards: CE Marked
- EN 60947
- CSA Certified
- UL Listed
- IEC 60947
- - Frequency: 50/60 Hz
- - Operating temperature: -13 to 122 Degrees F
- - Dimensions: Depth 4.92 in
- Height 3.54 in
- Width 3.54 in
- - Type: Full voltage reversing contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.40
- Package Height: 5.10
- Package Weight: 1.80
