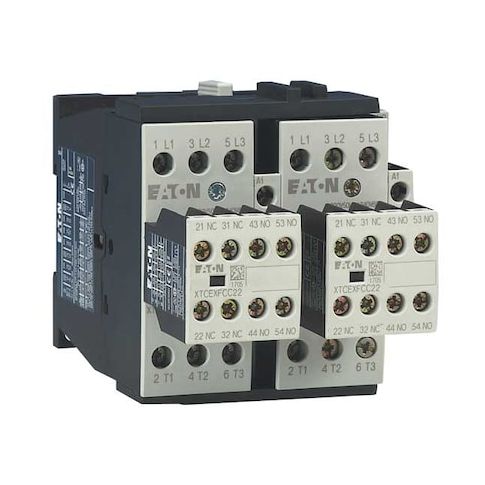

IEC Magnetic Contactor, 1NC/2NO, 120V AC, 3 P, Reversing, Screw MPN:XTCR032C21A

• The Eaton XT IEC Magnetic Contactor is a three-pole, reversing, 120V AC coil device rated for operation within the specified voltage and current ranges as per manufacturer specifications for use in IEC-standard control systems. It uses an electromagnetic coil to open or close main contacts and is part of the XT series with frame size C, screw terminals, and mounting options on a DIN rail or panel. The unit includes an embedded surge suppressor and comes without enclosure, suitable for use in control panels and similar assemblies.

  - Action: Reversing

• - Poles: 3
• - Amperage Rating: Rated for continuous operation at up to 32A, subject to proper installation and use conditions
• - Full Load Amps - Inductive / Resistive: Rated for inductive loads up to 32A and resistive loads up to 45A under specified conditions
• - Coil Voltage: Compatible with supply voltages of approximately 120V AC within standard tolerances
• - Auxiliary Contact Configuration: Configured with auxiliary contacts as specified
• actual contact ratings should be verified based on application requirements
• - Auxiliary Contact Form: Configured with auxiliary contacts as specified
• actual contact ratings should be verified based on application requirements
• - Includes Auxiliary Contacts: Equipped with auxiliary contacts according to product specifications
• performance may vary depending on usage conditions
• - Contact Configuration: The contact configuration is as specified
• actual switching capacity depends on load characteristics
• - Frame Size / Series: Conforms to the frame size and series standards indicated by manufacturer documentation
• - Contactor Style: IEC
• - Mounting Style: DIN Rail, Panel
• - Electrical Connection: Screw Terminals
• - Embedded Surge Suppressor: Yes
• - Enclosure / NEMA Rating: No Enclosure / IP20
• - Certifications / Standards: UL Listed
• CSA Certified
• EN 60947
• IEC 60947
• RoHS
• CE Marked
• - Frequency: Approximate operational frequency compatible within standard industrial power supplies (50/60 Hz)
• - Dimensions (Width x Height x Depth): 3.54 in x 6 in x 5.79 in
• - Product Name: Eaton XT IEC contactor
