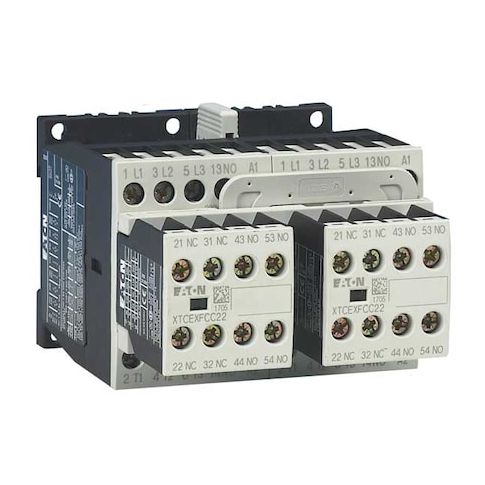

IEC Magnetic Contactor, 1NC/2NO, 240V AC, 3 P, Reversing, Screw MPN:XTCR012B21B

• The Eaton XT IEC contactor is a 3-pole, reversing, electrically operated switch rated for use within the specified IEC standards. It is rated for operation at specified voltage and current ratings, with screw terminals for wiring. The unit is compatible with DIN rail and panel mounting methods and contains an integrated surge suppression component (if applicable). It is part of the XT series, frame size B, and carries multiple certifications.

  Key features

• - Action: Reversing
• - Poles: 3
• - Coil Voltage: 240 V AC
• - Amperage Rating: 12 A
• - Embedded Surge Suppressor: Yes
• - Termination: Screw
• - Mounting Style: DIN Rail, Panel
• - Enclosure: No Enclosure
• - Frame Size: B
• - Series: XT
• - Product Name: Eaton XT IEC contactor
• - Certifications: IEC 60947
• EN 60947
• CSA Certified
• UL Listed
• - Compliances: CE Marked
• - Frequency: 50/60 Hz
• - IP Rating: IP20
• - Includes Auxiliary Contacts: Yes
• - Number of Auxillary Contacts: 4
• - Auxiliary Contact Configuration: 2NO/1NC
• - Auxiliary Contact Form: 1NC/2NO
• - Reversing: Yes
• - Dimensions (approx.): Width 3.54 in
• Depth 4.92 in
• Height 5.00 in
• - Product Length/Depth: 5.25 in
