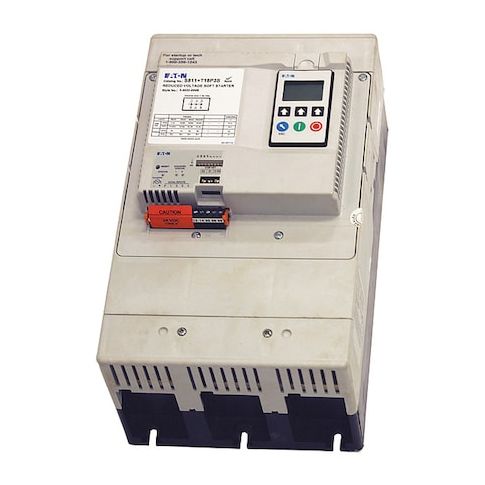

Soft Starter, 240A, 3 Phase MPN:S811+T24N3S
Free Shipping
In Stock
This three-phase soft start device from Eaton is a reliable solution for controlling the starting and stopping of electric motors. It operates on AC input power up to 600V and uses reduced-voltage starting methods with configurable ramp and stop times, reducing motor wear and tear and extending its lifespan. Ideal for applications such as industrial manufacturing, water treatment, and HVAC systems, this soft starter provides adjustable starting torque, built-in communication capability, and digital keypad control, making it easy to integrate with control and monitoring systems. It's a cost-effective and efficient way to optimize motor performance and reduce energy consumption.
Top product features:
- Three-phase operation with 600V AC input and 240 A output current.
- Supports motor operation up to 150 hp at 480V AC and up to 200 hp at 575V AC, with additional ratings for lower voltages.
- Adjustable ramp time and stop time from 0 to 180 seconds, with starting torque adjustable from 0% to 83%.
Top product applications:
- Industrial Motor Control
- Automotive Manufacturing
- Pumping Stations
This item is a three-phase soft start device used to control the starting and stopping of electric motors. It operates on AC input power up to 600V and uses reduced-voltage starting methods with configurable ramp and stop times. The unit includes an internal bypass and digital keypad interface, along with built-in communication capability for integration with control and monitoring systems.
Key Features:
- Item Type: Soft start with digital keypad control.
- Motor Power Ratings: Supports motor operation up to 150 hp at 480V AC and up to 200 hp at 575V AC, with additional ratings for lower voltages.
- Electrical Configuration: Three-phase operation with 600V AC input and 240 A output current.
- Starting and Stopping Control: Adjustable ramp time and stop time from 0 to 180 seconds, with starting torque adjustable from 0% to 83%.
- Bypass Configuration: Includes internal bypass contactors.
- Control and I/O: 24V DC control voltage with analog input, relay outputs, and digital inputs/outputs.
- Communication: Built-in Modbus communication with additional Ethernet IP, Profibus, and DeviceNet options available.
- Enclosure: Open-style NEMA 0 enclosure with IP20 rating.
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 14.40
- Package Height: 12.20
- Package Weight: 43.45
