Manual Mtr Protector, 25A, Rotary, Frame B MPN:XTPR025BC1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0294305

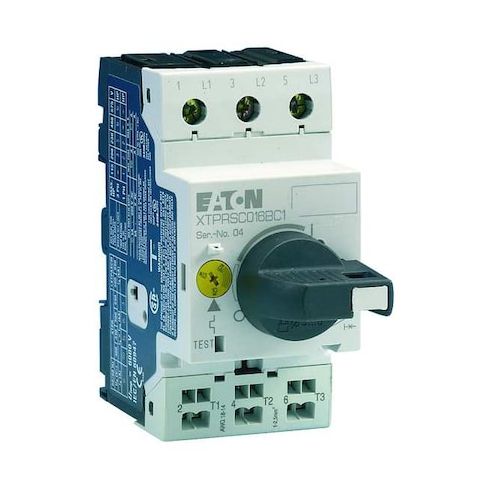

Manual Mtr Protector, 25A, Rotary, Frame B
Protect your motors from damage with the Eaton Manual Mtr Protector, a reliable and easy-to-use solution for motor protection. This 25A rotary protector is designed for use in a variety of applications, including industrial and commercial settings, and is compatible with single and three-phase motors. With a maximum voltage rating of 600V AC, it can handle a wide range of motor sizes and types. The operator selector switch allows for easy selection of motor phase, and the overload relay current setting ensures safe and reliable operation. Ideal for use in manufacturing, oil and gas, and other high-voltage applications.
Top product features:
- Protects motors from overloads and provides a manual reset
- Operates as a three-phase protector with a phase selector switch
- Protects motors up to 20 horsepower at 600V AC
Top product applications:
- Motor Protection in Industrial Settings
- Protecting motors in industrial settings from overloads and short circuits
- Automotive and Aerospace Manufacturing
Manual Motor Protector, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1 1/2 hp, Horsepower @ Single Phase - 240V AC 3 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 25 A, Horsepower @ Three Phase - 208V AC 5 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 15 hp, Series XTPR Series, Horsepower @ Three Phase - 600V AC 20 hp, Maximum Overload Relay Current Setting 25 A
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.00
- Package Height: 3.80
- Package Weight: 0.71
Product info last updated on January 15, 2026 1:20am UTC
Category: Industrial Electrical Controls and Automation
