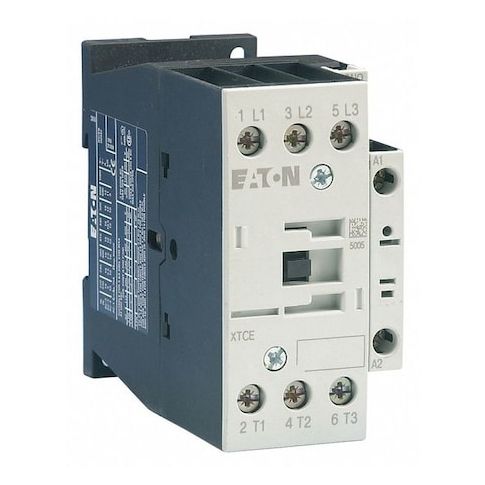

IEC Magnetic Contactor, 1NC, 240V AC, 3 P, Non-Reversing, Screw MPN:XTCE025C01B
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in various industrial applications. Its 3-pole, non-reversing design ensures secure control and eliminates the risk of accidental reversals. The contactor's built-in surge suppressor protects against voltage spikes and electrical surges, prolonging its lifespan and ensuring optimal performance. Suitable for use in control panels, machines, and equipment, this contactor is ideal for applications such as conveyor systems, pumps, and motors. Its compact design and easy mounting on DIN Rail or panel make it a convenient addition to any industrial setup.
Top product features:
- The Eaton XT IEC contactor is a 3-pole, non-reversing device.
- It includes one 1NC auxiliary contact.
- It has a built-in surge suppressor.
Top product applications:
- Industrial Control Panels
- Automated Manufacturing Systems
- Power Distribution Units (PDUs)
The Eaton XT IEC contactor is an IEC magnetic contactor (Frame C, Series XT) with a 240 V AC coil used to switch power circuits. It is a 3-pole, non-reversing device that includes one 1NC auxiliary contact and a built-in surge suppressor. The unit is rated for operation within the specified voltage range of up to 690V AC, has an IP20 enclosure rating as per standard specifications, and is designed for mounting on DIN Rail or panel in accordance with installation guidelines. It carries multiple certifications including EN 60947, UL Listed, CSA Certified, IEC 60947, and CE Marked compliance.
- Action: Non-Reversing
- - Amperage Rating / Full Load Amps: 25 A
- - Coil Voltage: 240 V AC
- - Auxiliary Contacts: 1NC (Includes Auxiliary Contacts: Yes)
- - Embedded Surge Suppressor: Yes
- - Maximum Voltage Rating: 690V AC
- - IP Rating: IP20
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Frame Size / Series: Frame C / XT
- - Type: Full voltage non-reversing contactor
- - Certifications / Standards: EN 60947
- UL Listed
- CSA Certified
- IEC 60947
- CE Marked
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.50
- Package Height: 1.90
- Package Weight: 1.00
