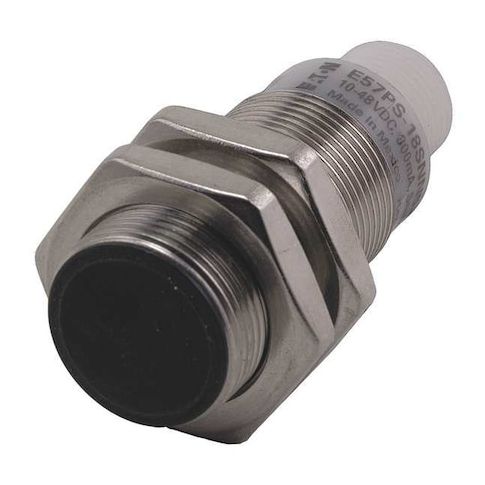

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded MPN:E57PS-18UPC8-Q
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0121969
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded
This inductive proximity sensor is designed for applications requiring precise detection of objects within a short distance. Its cylindrical shape and compact size make it ideal for use in tight spaces. With a maximum detecting distance of 8 mm and a high operating frequency of 1,200 Hz, this sensor is well-suited for applications such as robotics, material handling, and packaging. The stainless steel construction ensures durability and resistance to corrosion, while the IP69K rating provides protection against harsh environmental conditions. Suitable for use in temperatures ranging from -13°F to 158°F, this sensor is a reliable choice for a variety of industrial applications.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Detects objects up to 8 mm away
- Operates within a temperature range of -13 to 158 degrees Fahrenheit
Top product applications:
- Material Handling Applications
- Industrial Automation Systems
- Food Processing Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 1,200 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NC, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.45
Product info last updated on January 15, 2026 2:53am UTC
Category: Industrial Electrical Controls and Automation
