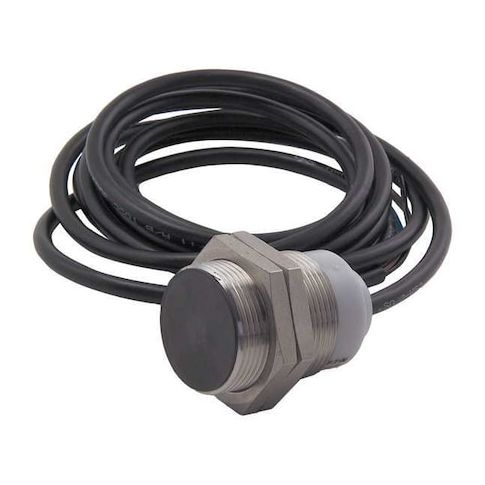

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57PS-30UNN15-C2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0121935
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This Eaton inductive proximity sensor is a reliable and versatile solution for detecting objects in various industrial applications. Its cylindrical design and stainless steel construction make it ideal for use in harsh environments. The sensor operates at a frequency of 600 Hz and has a maximum detecting distance of 15 mm, making it suitable for applications such as material handling, packaging, and automation. With a power requirement of 10-48V DC and a maximum current load of 300mA, this sensor can be easily integrated into a wide range of systems. Its NEMA rating of 4X and IP69K rating ensure its durability and resistance to harsh conditions.
Top product features:
- Inductive sensing technology allows the sensor to detect the presence of metal objects within a 15 mm range.
- The sensor has a 3 wire NPN output circuit type.
- The sensor has an operating temperature range of -13 Degrees to 158 Degrees F.
Top product applications:
- Machine Guarding
- Automated Assembly Lines
- Material Handling Systems
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 600 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 47 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.25
- Package Width: 5.25
- Package Height: 2.00
- Package Weight: 0.35
Product info last updated on January 15, 2026 2:53am UTC
Category: Industrial Electrical Controls and Automation
