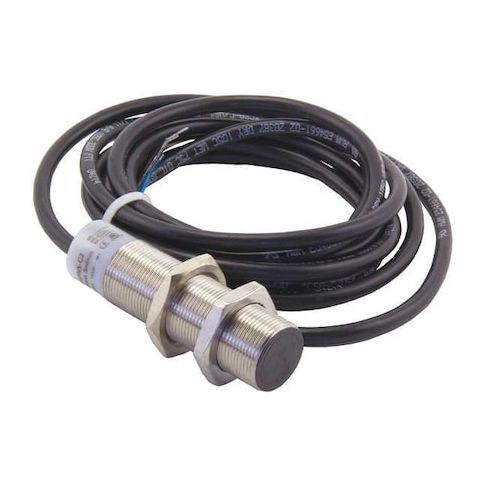

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57PS-18UNC8-C2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0121829
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive proximity sensor is designed for use in harsh environments, featuring a stainless steel casing and IP69K rating for protection against water and dust. With a maximum detecting distance of 8 mm and operating frequency of 1,200 Hz, it provides reliable detection and accurate measurement. Suitable for use in a variety of applications, including industrial automation, material handling, and food processing, this sensor offers a compact and durable solution for proximity sensing. Its 2-meter cable and 3-wire NPN output circuit make it easy to integrate into existing systems.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Detects objects at a maximum distance of 8 mm
- Operates at a frequency of 1,200 Hz
Top product applications:
- Automotive Manufacturing
- High-Temperature Food Processing
- Material Handling and Packaging
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 1,200 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.25
- Package Width: 5.25
- Package Height: 2.00
- Package Weight: 0.35
Product info last updated on January 15, 2026 2:53am UTC
Category: Industrial Electrical Controls and Automation
