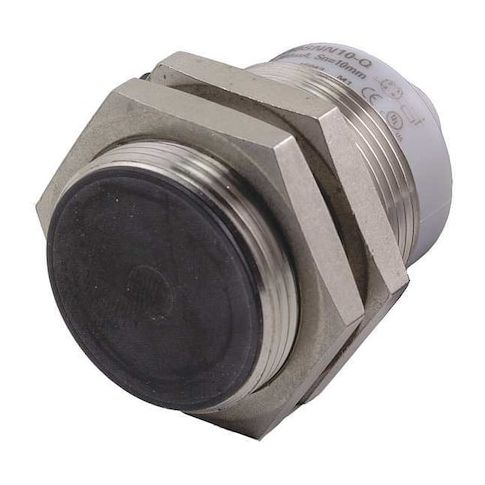

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded MPN:E57PS-30UNC15-Q
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0121768
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded
The Eaton Cylindrical Inductive Proximity Sensor is a reliable and efficient solution for detecting objects in a variety of industrial settings. This stainless steel sensor features a compact design and operates at a frequency of 600 Hz, making it ideal for applications where speed and accuracy are crucial. With a maximum detecting distance of 15 mm and a wide operating temperature range of -13 to 158°F, this sensor can withstand harsh environments and provide consistent results. Suitable for use in food processing, pharmaceutical, and other industries, this sensor is a valuable addition to any automation system.
Top product features:
- Cylindrical shape for easy installation and mounting in tight spaces
- Operates at a frequency of 600 Hz for precise detection and measurement
- Detects objects up to 15 mm away with a max current load of 300mA for reliable and efficient operation
Top product applications:
- Automotive applications due to its rugged NEMA 4X and IP69K rating
- Industrial control panels where the stainless steel construction provides durability
- Medical equipment where the high-frequency output and low current load are beneficial
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 600 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NC, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.45
Product info last updated on January 15, 2026 2:53am UTC
Category: Industrial Electrical Controls and Automation
