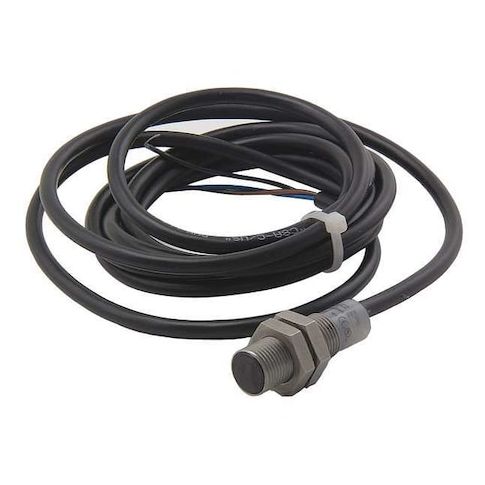

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57PS-12UPC4-C2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0121740
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
The Eaton Inductive Cylindrical Proximity Sensor is a reliable and versatile solution for detecting objects in industrial and commercial applications. Its compact stainless steel design and IP69K rating make it perfect for use in harsh environments, while its 2,000 Hz operating frequency ensures accurate detection. With a maximum detecting distance of 4 mm and a 300mA current load, this sensor is ideal for applications such as conveyor belt monitoring, level detection, and robotic automation. Its 10-48V DC power requirement and 3-wire NPN output make it easy to integrate into existing systems, providing a cost-effective and efficient solution for a variety of use cases.
Top product features:
- Cylindrical design for easy installation in tight spaces
- Detects objects at a distance of up to 4 mm
- Operates at a frequency of 2,000 Hz for reliable detection
Top product applications:
- Automated Material Handling Systems
- Industrial Automation and Control Panels
- Food Processing Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 42 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.25
- Package Width: 5.25
- Package Height: 2.00
- Package Weight: 0.35
Product info last updated on January 15, 2026 2:53am UTC
Category: Industrial Electrical Controls and Automation
