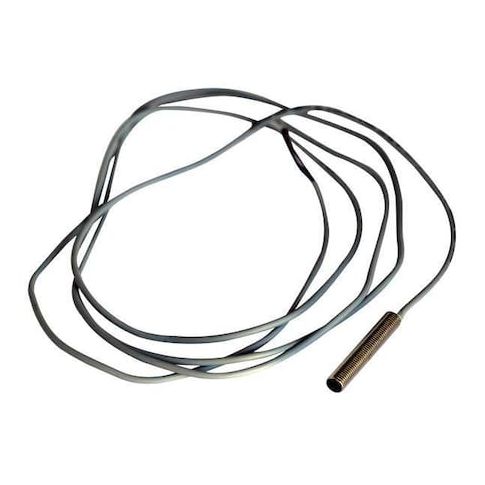

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57-08GU02-C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0114421
Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded
This compact inductive proximity sensor is ideal for detecting metal objects in industrial and commercial settings. With a 2 mm detecting distance and 2,000 Hz operating frequency, it provides accurate and reliable detection. The sensor's 3-wire NPN output circuit and 2 m cable make it easy to integrate into existing systems. Its rugged nickel-plated brass construction and IP67/IP69K ratings ensure it can withstand harsh environments. Suitable for use in applications such as material handling, automation, and robotics, this sensor offers a cost-effective solution for proximity detection. Its compact size and versatility make it a valuable addition to any industrial setup.
Top product features:
- Cylindrical shape for easy placement in tight spaces
- Detects objects up to 2 mm away with a high operating frequency of 2,000 Hz
- Operates with a 10 to 30V DC power requirement for flexibility in system design
Top product applications:
- Automotive Applications
- Industrial Automation and Control Systems
- Medical Device Monitoring and Control
Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 6P, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 37 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 6.50
- Package Height: 0.50
- Package Weight: 0.30
Product info last updated on January 15, 2026 2:44am UTC
Category: Industrial Electrical Controls and Automation
