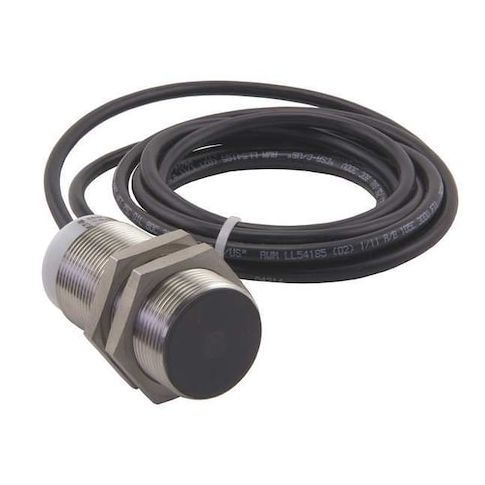

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57P-30UNC22-C2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0076749
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive proximity sensor is designed for use in a variety of applications where reliable detection of metal objects is required. It features a stainless steel housing, making it suitable for harsh environments, and a cylindrical shape that allows for easy installation in tight spaces. The sensor is powered by 10-48V DC and has a maximum detecting distance of 15mm, making it ideal for use in applications such as conveyor belt monitoring, automated assembly, and material handling. It also features a high level of protection against dust and water, making it suitable for use in outdoor or industrial settings.
Top product features:
- Cylindrical shape for easy installation and reduced obstruction
- Inductive sensing technology for non-contact detection and reduced wear on components
- Stainless steel construction for durability and resistance to corrosion
Top product applications:
- Automotive parts inspection
- Material handling equipment
- Food processing machinery
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 48V DC, Shielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 71 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 5.10
- Package Height: 1.70
- Package Weight: 0.53
Product info last updated on January 15, 2026 2:13am UTC
Category: Industrial Electrical Controls and Automation
