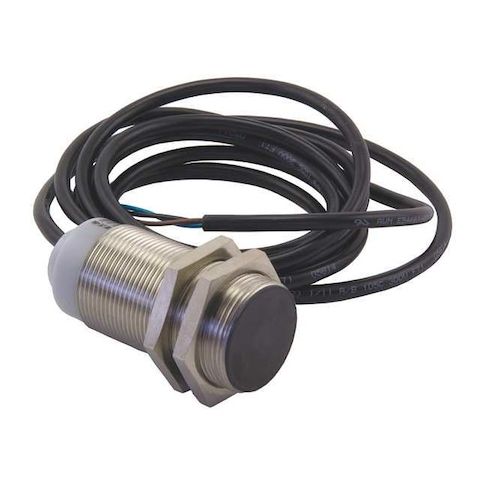

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57G-30UPC15-C2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0076225
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive proximity sensor is a reliable solution for detecting objects in harsh industrial environments. Its cylindrical design and stainless steel construction provide excellent durability and resistance to corrosion. With a 15 mm detecting distance and 500 Hz operating frequency, it's ideal for applications such as conveyor belt monitoring and object detection in manufacturing lines. The sensor's 3-wire PNP output and 10-30V DC power requirement make it easy to integrate into existing systems. Its compact size and IP67 rating ensure reliable operation in a wide range of temperatures, from -13°F to 158°F.
Top product features:
- Inductive proximity sensing technology allows for non-contact detection of objects
- Detects objects up to 15 mm away
- Operates at a frequency of 500 Hz for reliable sensing
Top product applications:
- Industrial automation and control systems
- Conveyor belt monitoring and detection
- Material handling and storage systems
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating IP67, Case Material Stainless Steel, Length 67 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 5.10
- Package Height: 1.70
- Package Weight: 0.54
Product info last updated on January 15, 2026 2:11am UTC
Category: Industrial Electrical Controls and Automation
