Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57G-18UNC8-C2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0076128

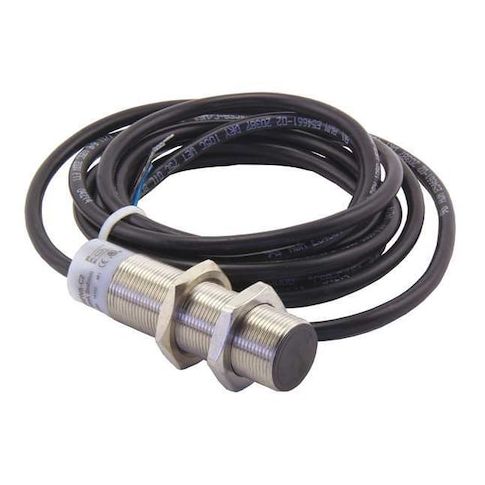

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. Its cylindrical design and stainless steel construction make it suitable for use in harsh environments, while its 18mm diameter and 2m cable length provide flexibility and ease of installation. The sensor operates at 1,200Hz and has a maximum detecting distance of 8mm, making it ideal for applications such as automation, robotics, and industrial control. Its 10-30V DC power requirement and 100mA current load make it easy to integrate into existing systems, providing a cost-effective and efficient solution for detecting objects in real-time.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Detects objects up to 8 mm away
- Operates at frequencies of 1,200 Hz
Top product applications:
- Machine Vision Inspection
- Automated Material Handling Systems
- Robotics and Assembly Line Monitoring
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 1,200 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating IP67, Case Material Stainless Steel, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 5.10
- Package Height: 1.70
- Package Weight: 0.36
Product info last updated on January 15, 2026 2:11am UTC
Category: Industrial Electrical Controls and Automation
