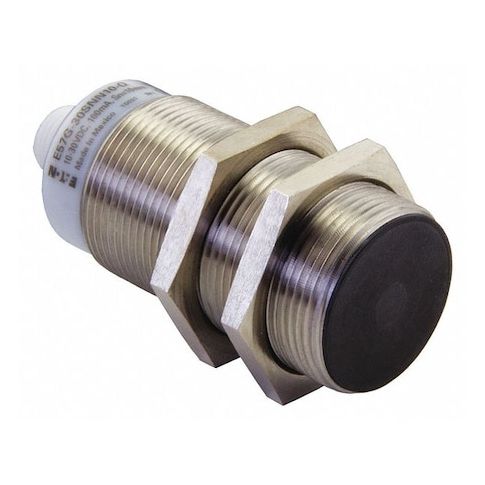

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded MPN:E57G-30UPC15-Q
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G0076030
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded
This inductive proximity sensor is ideal for detecting metal objects in harsh environments. With a stainless steel construction and NEMA 4X rating, it can withstand extreme temperatures and exposure to water and dust. Its compact cylindrical design makes it easy to install in tight spaces. The sensor operates at 500 Hz and has a maximum detecting distance of 15 mm, making it suitable for applications such as industrial automation, material handling, and medical equipment. It's also easy to integrate with existing systems due to its 3-wire PNP output and 4-pin micro connector.
Top product features:
- Cylindrical design for easy installation in tight spaces
- Operating frequency of 500 Hz for reliable detection
- Detects objects up to 15 mm away for precise positioning
Top product applications:
- Automotive Applications
- Industrial Automation and Control Systems
- Medical Device Manufacturing
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NC, NEMA Rating 4X, IP Rating IP67, Case Material Stainless Steel, Length 71 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 2.10
- Package Height: 2.10
- Package Weight: 0.25
Product info last updated on January 15, 2026 2:11am UTC
Category: Industrial Electrical Controls and Automation
