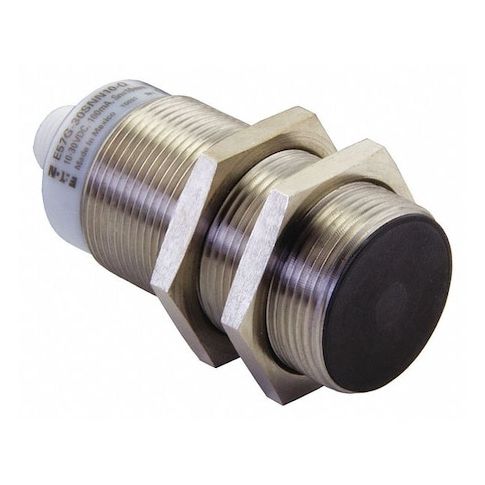

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded MPN:E57G-30UNN15-Q
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0075909
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded
This compact, stainless steel inductive proximity sensor is ideal for use in harsh environments and applications where space is limited. With a detection distance of up to 15mm and a frequency of 500Hz, it's perfect for detecting metal objects in industrial settings, such as on conveyor belts or in machinery. The sensor's 3-wire NPN output and 10-30V DC power requirement make it easy to integrate into existing systems. Its rugged design and IP67 rating ensure reliable operation in temperatures ranging from -13 to 158°F, making it suitable for use in a variety of industries, including manufacturing and food processing.
Top product features:
- Cylindrical shape allows for easy mounting and installation in tight spaces.
- Detects objects within a 15 mm maximum detecting distance.
- Operates at a frequency of 500 Hz for reliable and consistent performance.
Top product applications:
- Automotive manufacturing for detecting metal parts on assembly lines
- Medical device manufacturing for detecting metal components in sterilization processes
- Food processing for detecting metal contaminants in conveyor systems
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Stainless Steel, Length 71 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.20
- Package Height: 4.90
- Package Weight: 0.32
Product info last updated on January 15, 2026 2:10am UTC
Category: Industrial Electrical Controls and Automation
