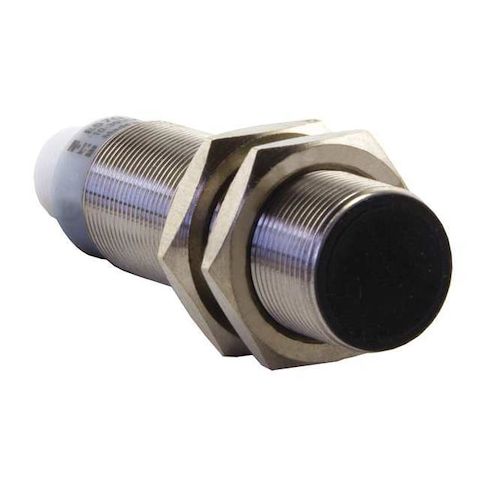

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded MPN:E57G-12UNC4-Q
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0075866
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, Micro, 3 Wires, Unshielded
This inductive proximity sensor is a compact and reliable solution for detecting objects in harsh environments. With a stainless steel housing and IP67 rating, it withstands extreme temperatures and exposure to water and dust. Its 12mm diameter and 69mm length make it ideal for use in tight spaces. The sensor operates at 2,000 Hz and can detect objects up to 4mm away, making it suitable for applications such as material handling, automation, and robotics. Its 3-wire NPN output and 10-30V DC power requirement provide flexibility in integration with existing systems.
Top product features:
- Cylindrical design allows for easy installation in tight spaces.
- Operating frequency of 2,000 Hz enables fast and reliable detection.
- Detects objects up to 4 mm away.
Top product applications:
- Automotive Parts Manufacturing
- Industrial Automation Systems
- Medical Device Assembly
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NC, NEMA Rating 4X, IP Rating IP67, Case Material Stainless Steel, Length 69 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 2.10
- Package Height: 1.90
- Package Weight: 0.13
Product info last updated on January 15, 2026 2:10am UTC
Category: Industrial Electrical Controls and Automation
