Circuit Breaker, PDG Series, 1200A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve MPN:PDG53M1200E2MN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G000901946

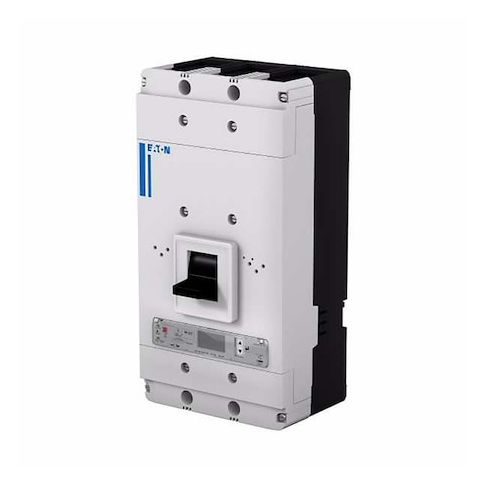

Circuit Breaker, PDG Series, 1200A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve
Protect your power system with the Eaton PDG Series 3 Pole Circuit Breaker, rated for 1200A and 600V AC. This reliable device is designed for use with Power Defense and features electronic tripping for fast and accurate protection. Ideal for industrial and commercial applications, it can handle maximum short-circuit currents of 50kA at 480V AC. With a compact frame size and a wide range of wire size compatibility, this circuit breaker is easy to install and maintain. Its robust construction and high operating temperature rating ensure reliable performance in demanding environments.
Top product features:
- Instantaneous trip functionality allows for rapid shutdown in the event of an electrical fault.
- Three-phase connection enables simultaneous control of three-phase power circuits.
- Maximum air rating of 50kA at 480V AC provides enhanced protection against high-energy faults.
Top product applications:
- Main electrical panel
- Industrial power distribution systems
- High-power electrical subpanels
Circuit Breaker, 1,200 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 50 kA at 480V AC, For Use With Power Defense, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Not Applicable, Trip Type Electronic, Phase Three, Instantaneous Trip Instantaneous, Phase Connection ABC, Frame Size 1200A/Frame 5, Height 16 in, Width 8.25 in, Depth 5.5 in, Min. Wire Size 500 AWG, Max. Wire Size 4/0 AWG, Max. Operating Temp. 158 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 12.00
- Package Height: 11.00
- Package Weight: 50.00
Product info last updated on January 12, 2026 10:49pm UTC
Category: Circuit Protection
