Circuit Breaker, PDG Series, 60A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve MPN:PDG13G0060TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G000901922

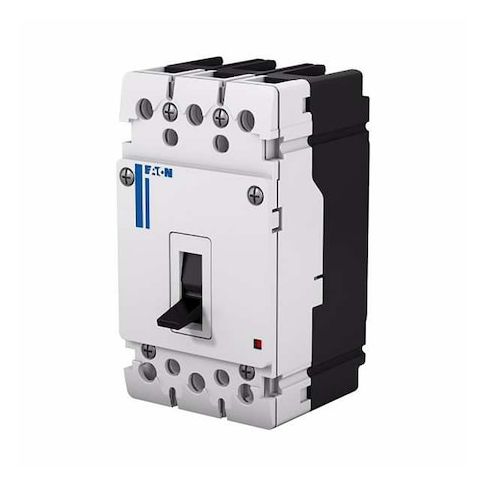

Circuit Breaker, PDG Series, 60A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve
Protect your electrical systems with the reliable PDG Series Circuit Breaker from Eaton. This 60A, 3-pole circuit breaker is designed for use in 600V AC systems, providing 35kA of maximum short-circuit current interruption. Ideal for applications in commercial and industrial settings, such as offices, warehouses, and factories. The thermal-magnetic trip mechanism ensures fast and accurate overload protection, preventing equipment damage and reducing downtime. With its compact design and easy installation, this circuit breaker is perfect for new construction or retrofit projects, offering a reliable and efficient solution for electrical system protection.
Top product features:
- 60A amp rating provides sufficient power for a wide range of applications
- Thermal magnetic trip type ensures reliable and fast overload protection
- Three-phase connection allows for efficient power distribution and handling of complex electrical loads
Top product applications:
- Industrial Power Systems
- Commercial Electrical Panels
- High-Density Data Centers
Circuit Breaker, 60 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/Frame 1, Height 5.5 in, Width 3 in, Depth 2.99 in, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 29 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 7.00
- Package Weight: 3.00
Product info last updated on January 12, 2026 10:49pm UTC
Category: Circuit Protection
