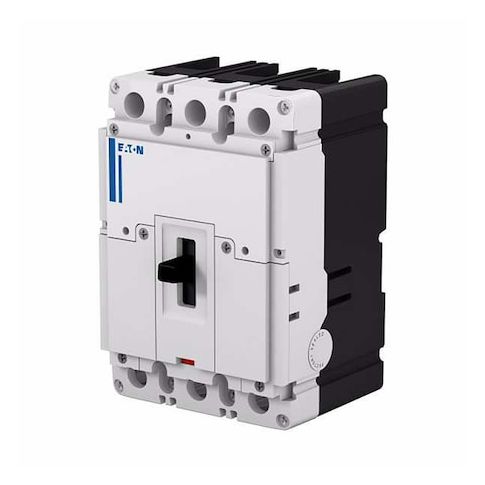

Circuit Breaker, PDG Series, 200A, 3 Pole, 600V AC, 25kA at 480V AC, A Curve MPN:PDG23F0200TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G000901830
Circuit Breaker, PDG Series, 200A, 3 Pole, 600V AC, 25kA at 480V AC, A Curve
Protect your electrical systems with the reliable PDG Series 200A 3 Pole Circuit Breaker from Eaton. Suitable for a variety of applications, including commercial and industrial settings, this circuit breaker provides excellent protection against overloads and short circuits. With a maximum air rating of 25kA at 480V AC, it can handle high fault currents with ease. Its thermal magnetic trip type ensures fast and accurate protection. The 200A rating makes it ideal for use in panels and switchboards, where high current capacity is required. Its compact size and standard terminal connections make installation straightforward.
Top product features:
- 200A amp rating for high power applications
- Thermal magnetic trip type for reliable overload protection
- Instantaneous trip fixed for rapid response to short circuits
Top product applications:
- Commercial Building Electrical Systems
- Industrial Power Distribution Systems
- High-Density Data Centers
Circuit Breaker, 200 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 25 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Height 6 in, Width 4.11 in, Depth 3.5 in, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on January 12, 2026 10:49pm UTC
Category: Circuit Protection
