Circuit Breaker, PDG Series, 400A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve MPN:PDG43G0400TFAJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G000901823

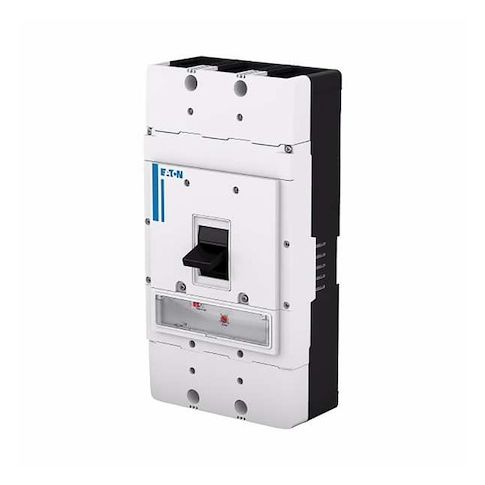

Circuit Breaker, PDG Series, 400A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve
Protect your electrical systems with the reliable PDG Series 400A 3 Pole Circuit Breaker from Eaton. Designed for use with Power Defense, this circuit breaker provides maximum safety and reliability in a wide range of applications, including commercial and industrial settings. With a maximum air rating of 35kA at 480V AC and a 3-phase instantaneous trip, this breaker ensures swift and effective protection against electrical surges and faults. Its compact size and adjustable phase connection make it easy to integrate into existing systems, while its high operating temperature rating ensures reliable performance in demanding environments.
Top product features:
- Circuit Breaker has a 400A amp rating for handling high currents.
- Circuit Breaker features a 3-pole design for phase separation and protection.
- Circuit Breaker has a tripping mechanism that uses both thermal and magnetic sensing for accurate and reliable protection.
Top product applications:
- Industrial Power Distribution Systems
- Commercial Building Electrical Systems
- High-Density Data Center Electrical Systems
- Circuit Breaker, 400 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35 kA at 480V AC, For Use With Power Defense, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermo Magnetic, Phase Three, Instantaneous Trip Fixed
- Adjustable, Phase Connection ABC, Frame Size 800A/Frame 4, Height 16 in, Width 8.25 in, Depth 4.38 in, Min. Wire Size 500 AWG, Max. Wire Size 1 AWG, Max. Operating Temp. 158 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 11.00
- Package Height: 19.00
- Package Weight: 31.00
Product info last updated on January 12, 2026 10:49pm UTC
Category: Circuit Protection
