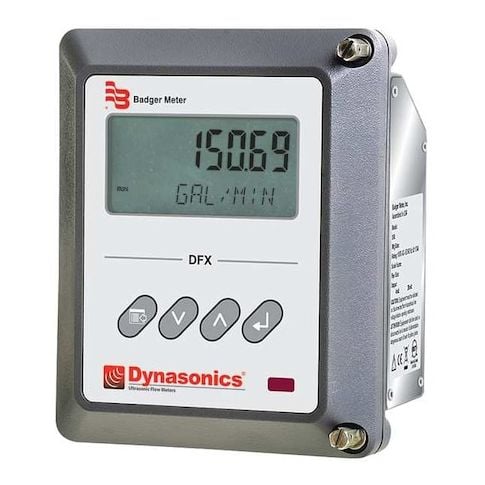

Dedicated Doppler Ultrasonic meter MPN:DDFXD2-ENNA-NN
Dedicated Doppler Ultrasonic meter
Accurately measure flow velocities in liquids with suspended reflectors using the Dedicated Doppler Ultrasonic meter from Dynasonics. Ideal for applications in chemical processing, wastewater treatment, and pharmaceutical manufacturing, this meter provides reliable results in a wide range of temperatures and flow rates. Its 2-line LCD display and optional analog and relay outputs make it easy to integrate into existing systems. With a response time of 6-60 seconds and a robust polycarbonate enclosure, this meter is designed to withstand harsh environments and provide consistent performance. Perfect for industrial process control and monitoring.
Top product features:
- Measures flow velocity in liquids containing a minimum of 100 ppm of useful sonic suspended reflectors
- Displays flow velocity on a 2-line, 8-character LCD display
- Provides a response time of 6-60 seconds
Top product applications:
- Flow measurement in industrial wastewater treatment plants
- Flow measurement in chemical processing plants
- Flow monitoring in laboratory settings for research and development
Ultrasonic Meter, Dedicated Doppler, Flow Velocity Range (FPS) .15-30, Flow Velocity Range (MPS) .05-9, Media Type Liquids Containing a Minimum of 100 ppm of Useful Sonic Suspended Reflectors, 2 Line, 8 Character LCD Display, Response Time 6-60 Seconds, Ambient Temp. Range -40 to 185 F, Electrical Connections Terminal, Analog Output Optional, Relay Output Optional, Enclosure Material Polycarbonate, Enclosure Rating IP-66, Power Source 12-28 VDC, Features Synchronization Provision, CE Approved
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.10
- Package Width: 6.30
- Package Height: 4.80
- Package Weight: 2.60
Product info last updated on January 10, 2026 9:32am UTC
Category: Process Monitoring
