1-1/2" FNPT Brass Electronic Ball Valve 2-Way MPN:EHH27ATE25H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1223336

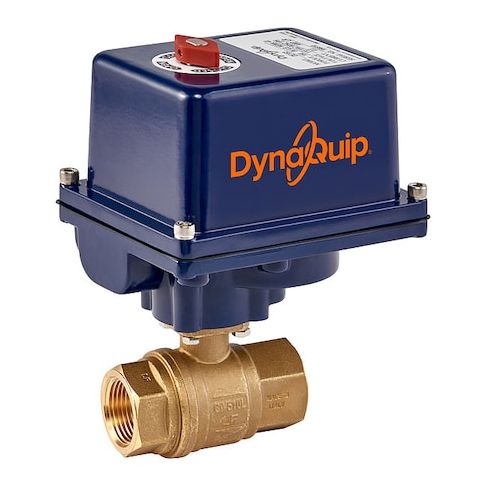

1-1/2" FNPT Brass Electronic Ball Valve 2-Way
This 1-1/2in FNPT Brass Electronic Ball Valve is a reliable and versatile solution for a wide range of applications, including industrial process control, water treatment, and HVAC systems. Its electrically actuated design provides fast and precise control, with a 90-degree actuation time of just 6 seconds. The valve is constructed from high-quality chrome-plated brass and features a durable two-piece design with PTFE and FKM seals for long-lasting performance. Suitable for pressures up to 600 psi, this valve is ideal for use in demanding environments, offering a high level of reliability and accuracy in a compact and easy-to-install package.
Top product features:
- Electrically Actuated Operation allows for remote control of the valve
- 90 Degree Actuator Rotation enables precise control and adjustment
- Thermal Overload Protection prevents damage to the actuator due to excessive heat
Top product applications:
- Water Treatment Plants
- Industrial Process Control Systems
- Oil and Gas Refineries
Electrically Actuated Two-Way Ball Valve, Ball Material Chrome-Plated Brass, Nominal Valve Size 1 1/2 in, Maximum Pressure - Operating 600 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, FKM, Seal Material PTFE, FKM, Voltage 12 to 24V AC/DC, Fail Safe Position Fail Last, IP Rating IP66, Actuator Cycle Time - 90 Degrees 6 sec, Valve Construction Two-Piece, Actuator Features Heater, Position Indicator, Thermal Overload Protection
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.30
- Package Width: 11.50
- Package Height: 5.90
- Package Weight: 8.51
Product info last updated on January 15, 2026 11:27pm UTC
Category: HVACR and Appliance Controls
