Digital Temperature Controller, 95.9 mm L MPN:25123

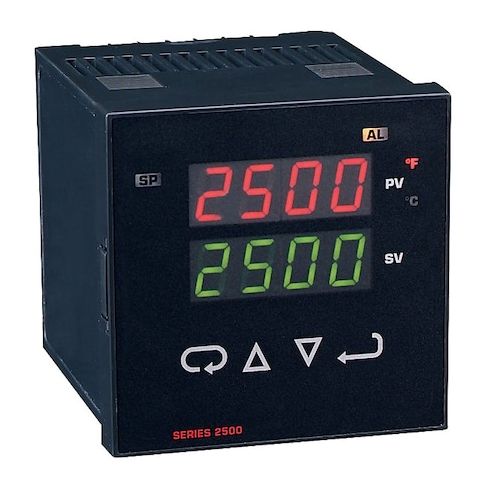

Digital Temperature Controller, 95.9 mm L
This Digital Temperature Controller from Dwyer Instruments is a versatile and reliable solution for a wide range of applications, including industrial processes, laboratory equipment, and HVAC systems. With its PID and PI control modes, it can accurately regulate temperatures between 14°F and 131°F, making it ideal for applications where precise temperature control is crucial. The controller's programmable alarm can be set to trigger on high or low temperatures, or both, providing an added layer of safety and monitoring capabilities. Its compact design and DIN size 1/4 make it easy to integrate into existing systems.
Top product features:
- Temperature range from 14 Degrees to 131 Degrees F
- PID and PI control modes for precise temperature regulation
- SPDT switch function with 10 A @ 240V AC rating for reliable operation
Top product applications:
- Laboratories for precise temperature control in chemical reactions or experiments
- Industrial processes that require temperature control in manufacturing or production environments
- Medical facilities for temperature control in refrigeration units, incubators, or medical equipment
Temperature Controller, Digital, RTD Sensor Type, DIN Size 1/4, Input Voltage 100 to 240V AC, Switch Function SPDT, 10 A @ 240V AC, Output Relay, Temp. Range 14 Degrees to 131 Degrees F, Control Mode PID, PI, 0 to 20mA Amps, Length 95.9 mm, Width 95.9 mm, Depth 115.8 mm, Outputs Include Solid State Relay, Mechanical Relay, Programmable Alarm can Act as High or Low or High/Low Guard Band Alarm, Power Consumption 5 VA, Standards CE, cULus, Series Series 2500
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 5.30
- Package Height: 7.90
- Package Weight: 1.12
Product info last updated on February 10, 2026 9:34pm UTC
Category: Industrial Electrical Controls and Automation
