Sight flow indicator, 1-1/4" body, 4.375" L x 3.125" D x 2.563" H (111 x 79 x 65 mm), 3.0 lb (1.4 kg). MPN:SFI-300-1-1/4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7604712

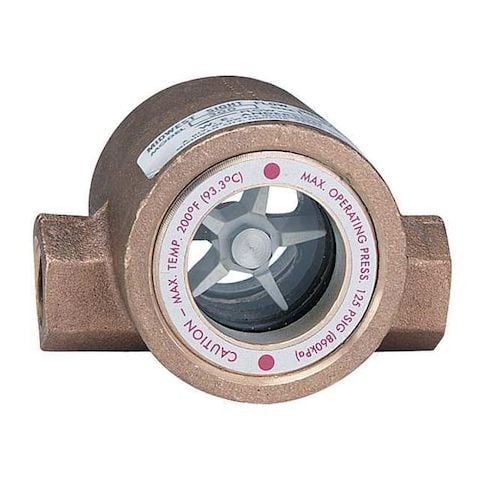

Sight flow indicator, 1-1/4" body, 4.375" L x 3.125" D x 2.563" H (111 x 79 x 65 mm), 3.0 lb (1.4 kg).
The Dwyer Instruments Window Sight Flow Indicator is a reliable and durable solution for monitoring fluid flow in various applications. Its 1-1/4 inch body and 2-inch tempered glass sight window provide a clear view of fluid flow, allowing for easy identification of flow direction and velocity. Suitable for use in horizontal and vertical left and right flow directions, this indicator can be used in a variety of industries, including water treatment, chemical processing, and HVAC. Its bronze body and Buna-N seal ensure long-lasting performance in temperatures ranging from 32°F to 200°F, making it an ideal choice for demanding applications.
Top product features:
- Window Sight Flow Indicator with Impeller
- Indicator Type Rotor
- Sight Material Tempered Glass
Top product applications:
- Chemical Process Monitoring
- Water Treatment Plant Monitoring
- Heating, Ventilation, and Air Conditioning (HVAC) System Monitoring
Window Sight Flow Indicator with Impeller, Indicator Type Rotor, Body Material Bronze, Connection Size 1 1/4 in, Connection Type FNPT, Operating Pressure - Maximum 125 psig, Sight Material Tempered Glass, Sight Diameter 2 in, Number of Windows 2, Flow Direction Horizontal Left, Horizontal Right, Vertical Down, Vertical Up, Media Temperature - Minimum 32 Degrees F, Media Temperature -Maximum 200 Degrees F, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 3.60
- Package Height: 3.40
- Package Weight: 2.70
