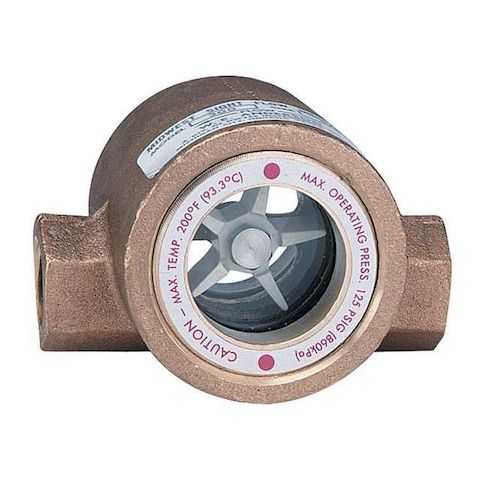

Sight flow indicator, 1/4" body, 3.063" L x 2.250" D x 2.125" H (78 x 57 x 54 mm), 1.7 lb (0.8 kg). MPN:SFI-300-1/4

The Dwyer Instruments Sight Flow Indicator is a reliable solution for visualizing fluid flow in various applications. This rugged indicator features a bronze body, tempered glass sight, and Buna-N seal, ensuring durability and resistance to extreme temperatures. With a maximum operating pressure of 125 psig, it can handle demanding industrial environments. Ideal for monitoring flow in horizontal and vertical orientations, this indicator is perfect for use in chemical processing, water treatment, and HVAC systems, providing real-time visual feedback for improved process control and maintenance efficiency.

Top product features:

• The product has two tempered glass windows for observing flow direction.
• The sight flow indicator is designed for horizontal flow in left and right directions, and vertical flow in down and up directions.
• The impeller rotor provides a clear indication of flow direction and media presence.

Top product applications:

• Monitoring liquid flow in industrial piping systems
• Measuring flow rates in laboratory equipment
• Inspecting fluid flow in chemical processing plants
